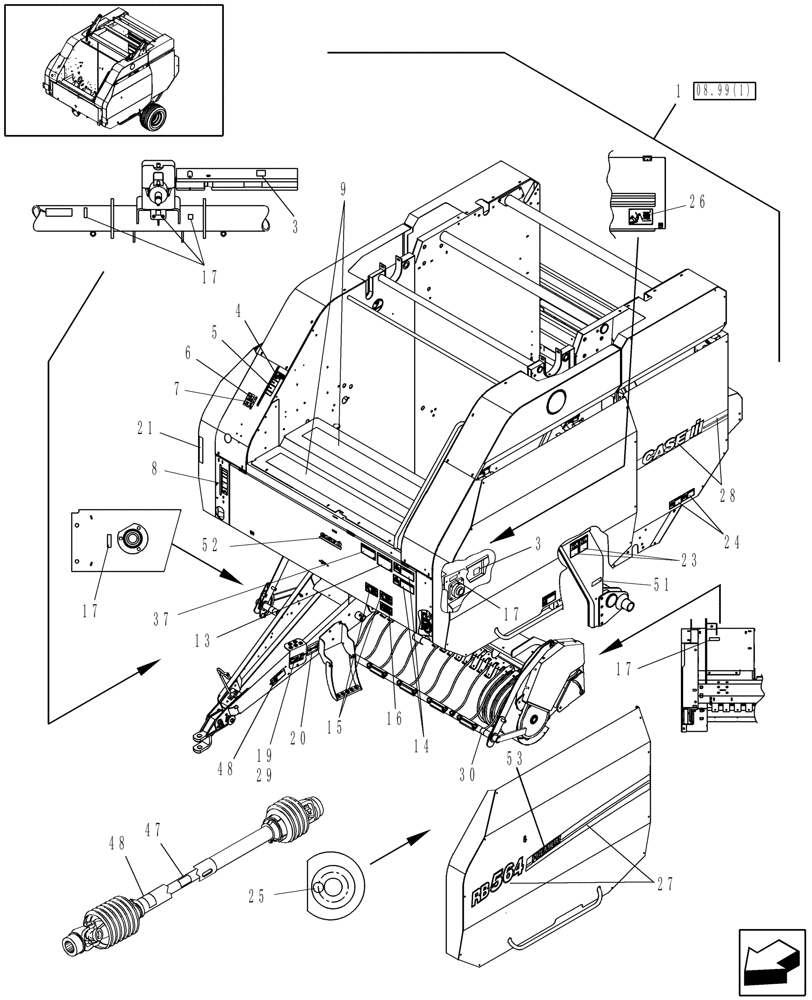

Запчасти Case IH RB564 (08.99[2]) - DECALS, LH (08) - SHEET METAL/DECALS

1

87037756

DECAL KIT

Includes: Decals Shown in Fig. 08.99-1, 08.99-2 & Decal Placement Guide.

1шт.

3

87037375

WARNING DECAL

Net Knife, English

2шт.

3

87037730

DECAL

WARNING, Net Knife, French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

4

86978512

DECAL

Bale Stop

1шт.

5

86619205

DECAL

Bale Size

1шт.

6

86619207

DECAL

Latch Open

1шт.

7

86619208

DECAL

Latch Closed

1шт.

8

86642358

DECAL

Cut

1шт.

9

86643976

ANTI-SKID STRIP

Safety, 4"x 56"

2шт.

13

86622073

WARNING DECAL

English

1шт.

13

86622074

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

14

84337031

DANGER DECAL

English

1шт.

14

84346730

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

15

87014378

WARNING DECAL

Electric Risk, English

1шт.

15

87014380

WARNING DECAL

DANGER, Electric Risk, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

16

86632699

WARNING DECAL

English

1шт.

16

86632803

WARNING DECAL

WARNING, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

17

165109

DECAL

Lube Fitting

7шт.

19

87041061

WARNING DECAL

English

1шт.

19

87042013

DECAL

WARNING, French

1шт.

20

87521354

DECAL

C-V Driveline Lube, 50 Hr. Lube Interval

1шт.

21

86547782

REFLECTOR,YELLOW

Yellow Retroreflective

2шт.

23

86631518

DANGER DECAL

English

4шт.

23

86632801

DECAL

DANGER, French

4шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

24

86631519

DANGER DECAL

English

3шт.

24

86632802

DECAL

DANGER, French

3шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

25

86636717

DECAL

Circle

1шт.

26

87564481

DECAL

Net Routing

1шт.

27

87618580

DECAL

LH, RB564 Front Stripe

1шт.

28

87662330

DECAL

LH, CIH Stripe

1шт.

29

87049205

WARNING DECAL

1000 RPM, English

1шт.

29

87053157

DECAL

WARNING, 1000 RPM, French

1шт.

30

86619595

DECAL

Stripe, White & Black

2шт.

31

87018641

DECAL

Oil Level

1шт.

32

87539016

DECAL

ATTENTION, Clutch

1шт.

35

86547781

REFLECTOR,RED

Red, Retroreflective

2шт.

37

87041060

WARNING DECAL

English

1шт.

37

87042011

WARNING DECAL

French

1шт.

39

86626958

WARNING DECAL

English

2шт.

39

86626961

WARNING DECAL

French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

40

718861

DECAL

ATTENTION

2шт.

41

87662331

DECAL

Stripe, CIH

1шт.

47

849472

DANGER DECAL

English

1шт.

47

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

48

9826789

DANGER DECAL,180mm x 90mm H

English

1шт.

48

9827448

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

51

87018134

DECAL

Spindle

2шт.

52

87635954

DECAL

CIH Logo

2шт.

53

84319605

DECAL

Premium YAN, Start Serial: 45400

1шт.

Premium Models Only.

1шт.
