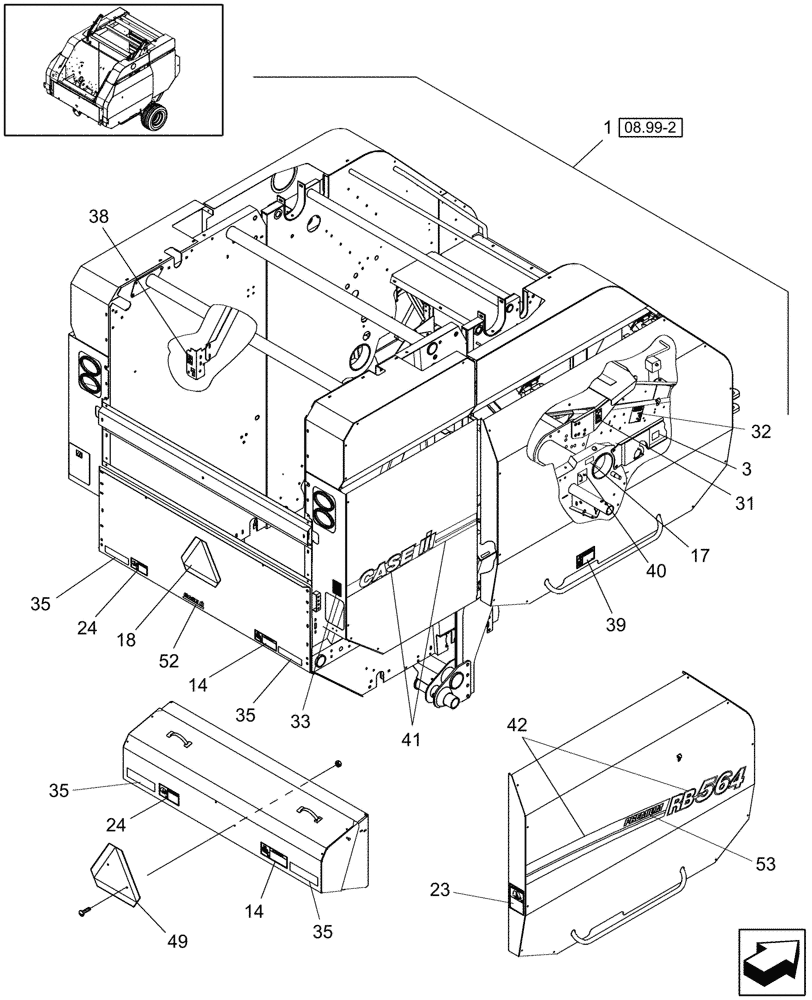

Запчасти Case IH RB564 (08.99[1]) - DECALS, RH (08) - SHEET METAL/DECALS

1

87037756

DECAL KIT

Includes: Decals Shown in Fig. 08.99-1, 08.99-2 & Decal Placement Guide.

1шт.

3

87037375

WARNING DECAL

Net Knife, English

1шт.

3

87037730

DECAL

WARNING, Net Knife, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

14

86631516

WARNING DECAL

English

2шт.

14

86632799

DANGER DECAL

WARNING, French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

17

165109

DECAL

Lube Fitting

7шт.

18

86547711

DECAL,SMV

SMV

1шт.

23

86631518

DANGER DECAL

English

4шт.

23

86632801

DECAL

DANGER, French

4шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

24

86631519

DANGER DECAL

English

3шт.

24

86632802

DECAL

DANGER, French

3шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

31

87018641

DECAL

Oil Level

1шт.

32

87539016

DECAL

ATTENTION, Clutch

1шт.

33

9826734

DECAL

Control Valve

1шт.

35

86547781

REFLECTOR,RED

Red, Retroreflective

2шт.

36

87556985

DECAL

CASE IH Logo

2шт.

38

9826684

DECAL

Locking

1шт.

39

86626958

WARNING DECAL

English

2шт.

39

86626961

WARNING DECAL

French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

40

718861

DECAL

ATTENTION

2шт.

41

87662331

DECAL

RH, CIH Stripe

1шт.

42

87618581

DECAL

RH, RB564 Front Stripe

1шт.

47

849472

DANGER DECAL

English

1шт.

47

849483

DANGER DECAL

French

1шт.

48

9826789

DANGER DECAL,180mm x 90mm H

English

1шт.

48

9827448

DANGER DECAL

French

1шт.

49

86547710

EMBLEM

KIT SMV, Includes: Hardware

1шт.

51

87018134

DECAL

Spindle

2шт.

52

87635954

DECAL

CIH Logo

2шт.

53

84319605

DECAL

Premium , Start Serial: YAN45400

1шт.

Premium Models Only.

1шт.
