Запчасти Case IH RB564 (07.42) - HYDRAULICS, BALE TENSION, DOUBLE CYLINDER (07) - HYDRAULIC SYSTEM

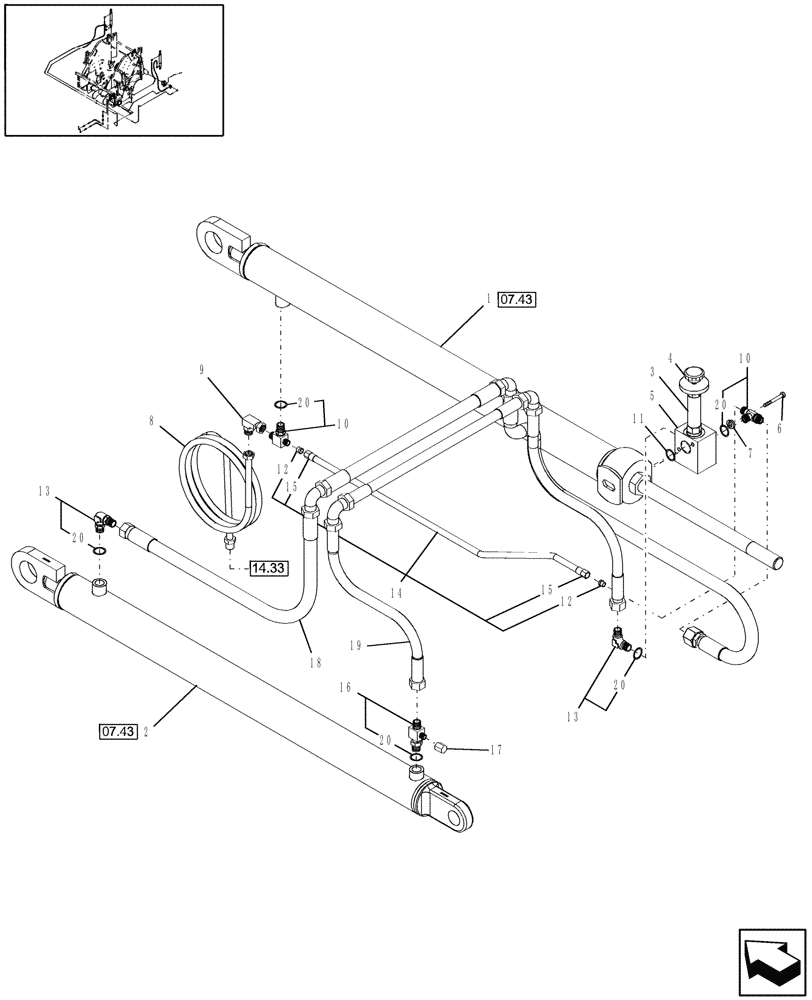

Схема запчастей Case IH RB564 - (07.42) - HYDRAULICS, BALE TENSION, DOUBLE CYLINDER (07) - HYDRAULIC SYSTEM
14.33
8
12
19
15
16
14
13
2
9
20
11
4
1
20
20
12
17
10
15
18
6
13
3
20
20
5
10
7
07.43
07.43

Артикул

Название

Примечание

Количество

1

87027902

CYLINDER ASSY.

Hydraulic, Bale Tension, RH

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

87027900

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 685.8mm Stroke

Hydraulic, Bale Tension, LH

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

3

86520937

VALVE PRESSURE RELIE

1шт.

4

86505699

KNOB

1шт.

5

86601286

EXCHANGE VALVE PLATE

1шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

86621388

FLEXIBLE HOSE,6.35mm ID x 3251.2mm L, SAE 100R17

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

10

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

11

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

12

218-363

SLEEVE,37 Degree, 3/8" Tube

4шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

14

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

15

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

4шт.

16

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

17

218-754

CAP,37 Degree, 9/16"-18

1шт.

18

86521507

FLEXIBLE HOSE

1шт.

19

86640723

FLEXIBLE HOSE

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

Выбрано товаров: 22
