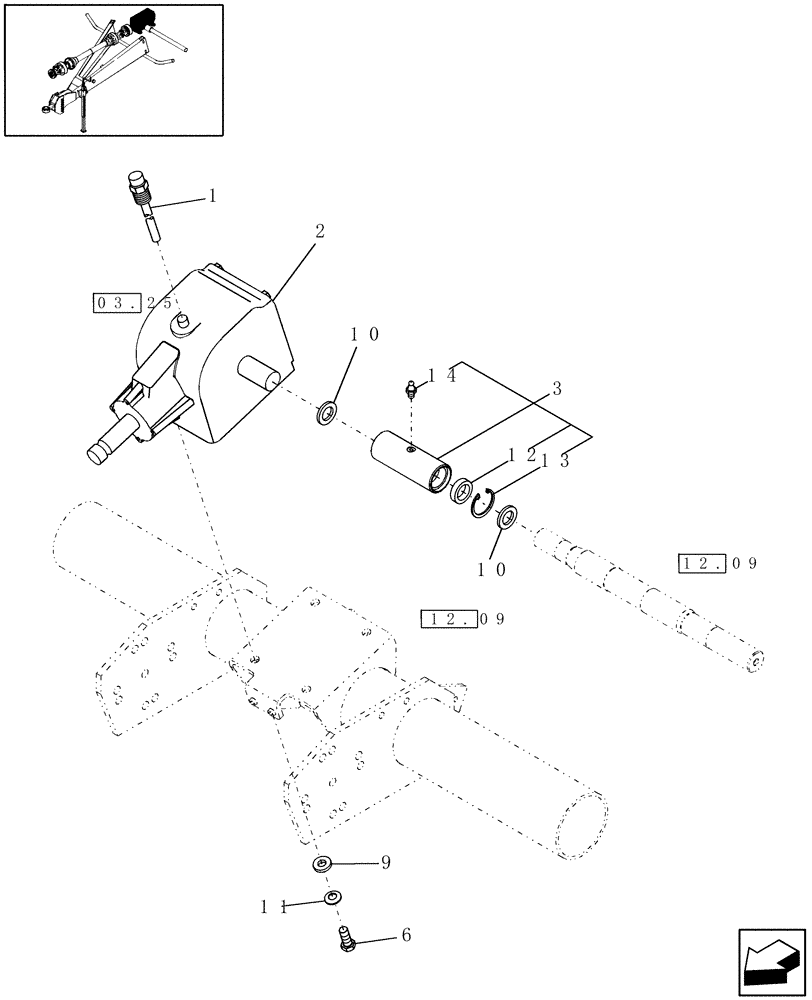

Запчасти Case IH RB564 (03.20) - GEARBOX, MOUNTING, 1000 RPM (03) - MAIN GEARBOX

1

86626271

DIPSTICK

1шт.

2

87025453

GEARBOX

Main Drive, 1000 RPM

1шт.

87344585R

REMAN-PTO GEARBOX A.

RB564, Reman For New P/N's 87344585 & 87344585,

1шт.

87344585C

CORE-PTO GEARBOX A.

Return Number

1шт.

3

86634418

COUPLING

1шт.

6

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

9

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

1-3/8" OD

4шт.

10

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

Special

2шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

12

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

Oil

2шт.

13

300643

SNAP RING,M38, Int

2шт.

14

62161

LUBE NIPPLE,M8 x 1.25, Str

Self-Tapping

2шт.
