(01.21) - POWER TAKE OFF, 1000 RPM, SLIP CLUTCH, NORTH AMERICA

Запчасти Case IH RB564 (01.21) - POWER TAKE OFF, 1000 RPM, SLIP CLUTCH, NORTH AMERICA (01) - POWER TAKE OFF

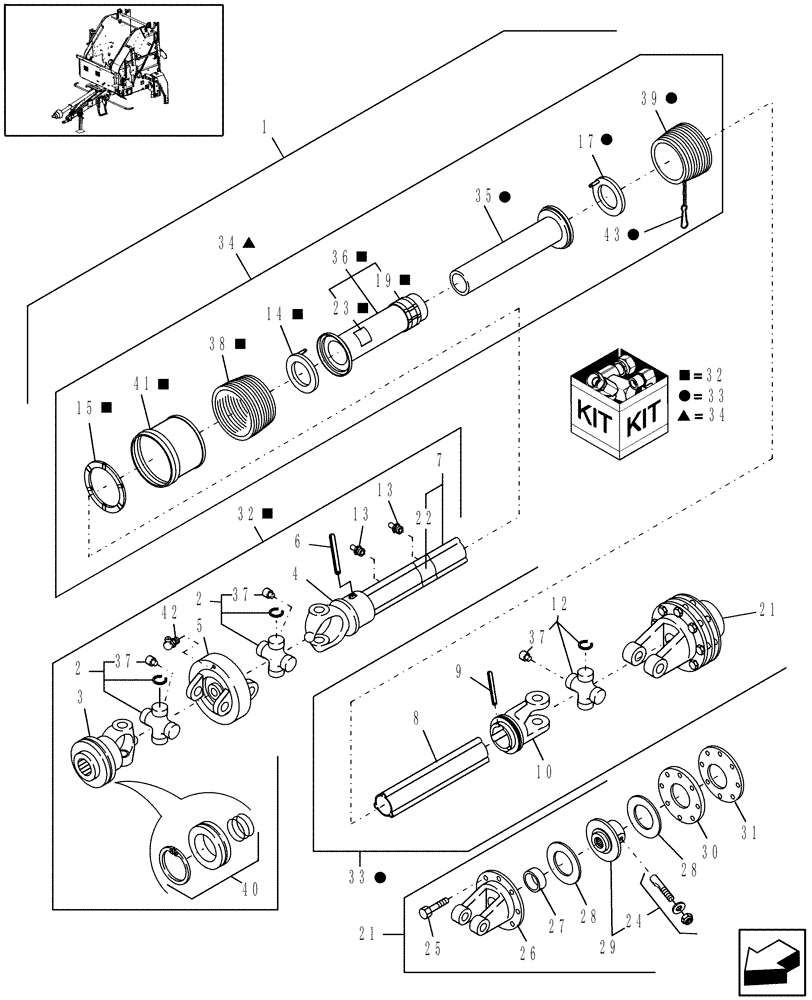

Схема запчастей Case IH RB564 - (01.21) - POWER TAKE OFF, 1000 RPM, SLIP CLUTCH, NORTH AMERICA (01) - POWER TAKE OFF
34
40
19
35
13
29
4
38
31
36
3
33
2
22
32
2
27
34
26
13
30
9
21
43
8
28
42
32
24
21
14
37
1
28
10
7
25
5
37
41
17
37
33
23
39
12
15
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87516694

PTO,1 3/8 x 21 Spline Incl

1000 RPM, Slip Clutch

1шт.

2

87517787

U-JOINT SPIDER

1шт.

3

87517788

YOKE

1-3/8", Standard

1шт.

3

87685381

YOKE

1-3/4", Optional

1шт.

4

87517786

YOKE

1шт.

5

87517785

BODY

1шт.

6

87517784

ROLL PIN,8.6mm OD x 80mm L

1шт.

7

87517780

TUBE

Outer

1шт.

8

87517781

TUBE,1170 mm L

1шт.

9

86625846

PIN

Spring

1шт.

10

87517779

YOKE

1шт.

11

87517776

SLIP CLUTCH

1шт.

12

87018246

SPIDER

1шт.

13

87012758

LUBE NIPPLE

LUBRICATOR

2шт.

14

87517774

SHIELD

1шт.

15

87517775

SHIELD

Includes: Clip

1шт.

16

PL

PROCURE LOCALLY

Screw

12шт.

Not Illustrated

1шт.

17

86625852

RING NUT

1шт.

18

PL

PROCURE LOCALLY

Washer

6шт.

Not Illustrated

1шт.

19

87518208

COLLAR ASSY.

1шт.

20

PL

PROCURE LOCALLY

Screw

2шт.

Not Illustrated

1шт.

21

87517776

SLIP CLUTCH

1шт.

22

849472

DANGER DECAL

English

1шт.

22

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

23

849471

DANGER DECAL

English

1шт.

23

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

24

86625865

KIT

Tapered

1шт.

25

87012735

KIT

Bolt

8шт.

26

86625860

CLUTCH PLATE

1шт.

27

86984909

BUSHING

1шт.

28

84011442

DISC

2шт.

29

86625864

HUB

1шт.

30

87517773

THRUST PLATE

1шт.

31

87517766

BELLEVILLE SPRING

1шт.

32

87517789

FRONT PTO ASSY

1шт.

33

87517790

REAR PTO ASSY

1шт.

34

87517791

REPAIR KIT

1шт.

35

NSS

NOT SOLD SEPARAT

Shield

1шт.

36

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

37

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

38

NSS

NOT SOLD SEPARAT

Cover

1шт.

39

NSS

NOT SOLD SEPARAT

Cover

1шт.

40

87018800

KIT

Kit

1шт.

41

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

42

933205R91

LUBE NIPPLE,90 Degree, M8 x 1.25

1шт.

43

86979198

CHAIN,229mm L

Safety

1шт.
