Запчасти Case IH RB564 (18.91) - DIA KIT, GEARBOX CONVERSION, 1000 TO 540 RPM (18) - ACCESSORIES

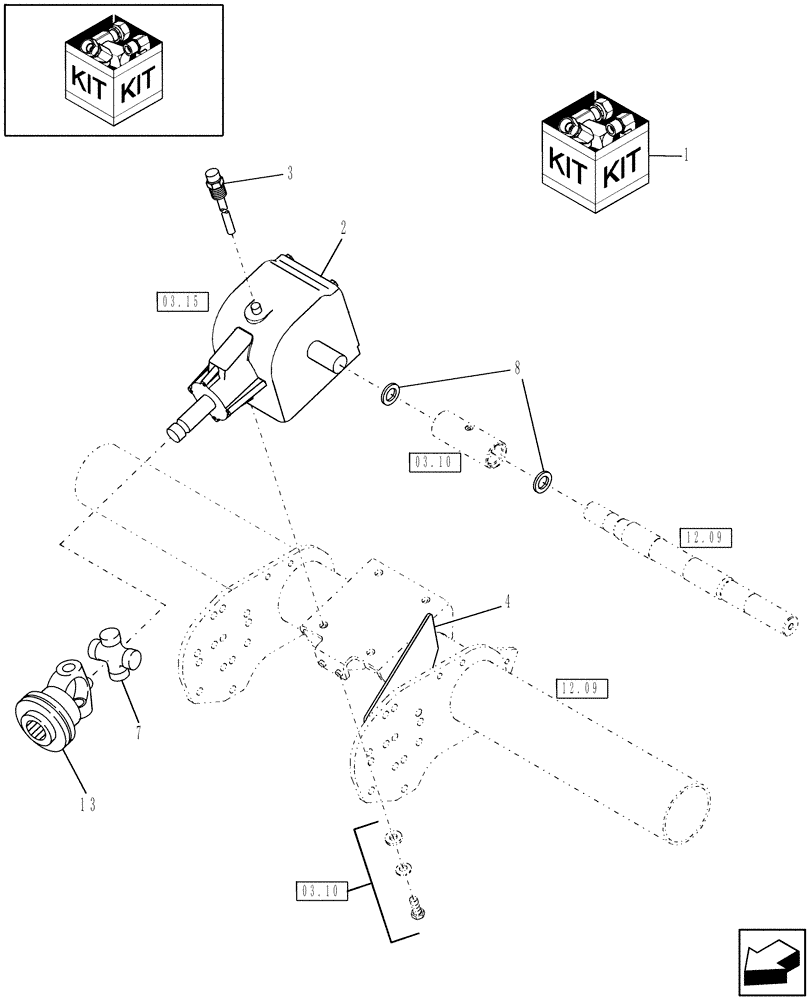

Схема запчастей Case IH RB564 - (18.91) - DIA KIT, GEARBOX CONVERSION, 1000 TO 540 RPM (18) - ACCESSORIES
12.09
03.10
12.09
03.10
03.15
4
3
8
1
2
7
13

Артикул

Название

Примечание

Количество

1

87702276

CONVERSION KIT

Gearbox Conversion, 1000 RPM to 540 RPM, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87391830

GEARBOX

540 RPM

1шт.

Manufacturer's I.D. #9.321.803.10 Stamped in Top of Gearbox Housing

1шт.

3

86626270

DIPSTICK,129mm L

1шт.

4

86637820

PLATE

Fixture

1шт.

7

87517787

U-JOINT SPIDER

1шт.

8

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

1шт.

12

87041061

WARNING DECAL

540 RPM, English

1шт.

Not Illustrated

1шт.

12

87042013

DECAL

WARNING, 540 RPM, French

1шт.

Not Included in Kit. Shown for Reference Only.

1шт.

13

87518490

YOKE

1-3/8" - 6 Splines

1шт.

Выбрано товаров: 13
