(18.90) - DIA KIT, GEARBOX CONVERSION, 540 TO 1000 RPM

Запчасти Case IH RB564 (18.90) - DIA KIT, GEARBOX CONVERSION, 540 TO 1000 RPM (18) - ACCESSORIES

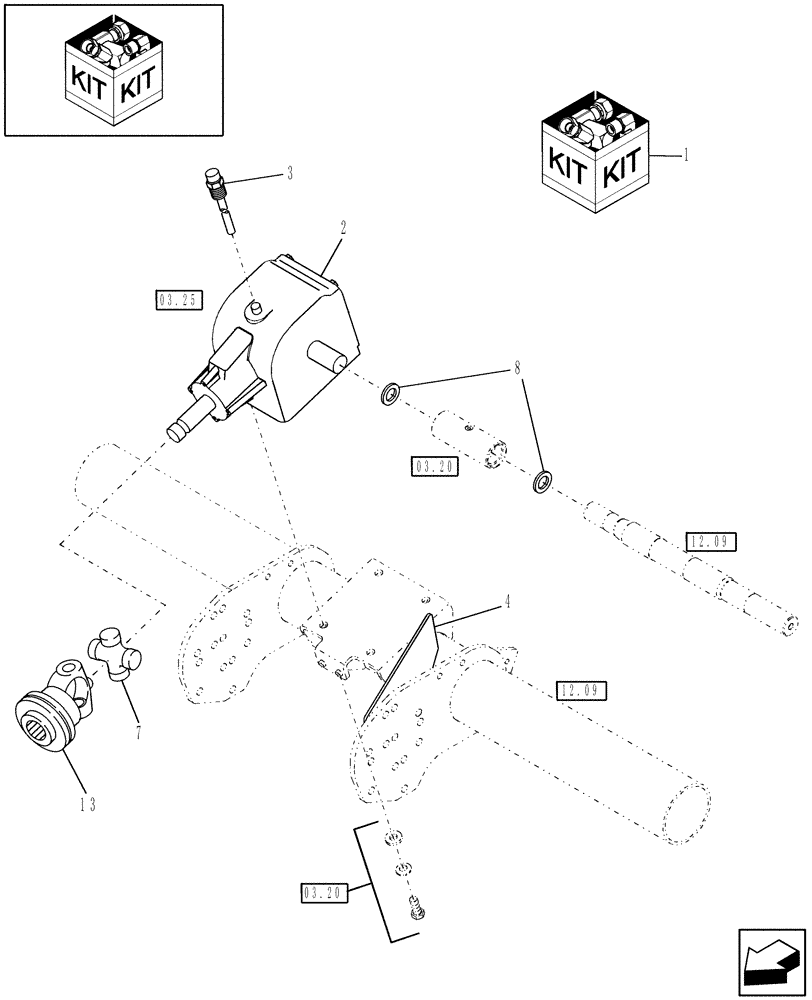

Схема запчастей Case IH RB564 - (18.90) - DIA KIT, GEARBOX CONVERSION, 540 TO 1000 RPM (18) - ACCESSORIES
4
8
3
13
03.25
12.09
03.20
12.09
03.20
1
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702277

CONVERSION KIT

Gearbox Conversion, 540 RPM to 1000 RPM, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87344585

GEARBOX

1000 RPM

1шт.

Manufacturer's I.D. #322.002.00 Stamped in Top of Gearbox Housing

1шт.

3

86626271

DIPSTICK

1шт.

4

86637820

PLATE

Fixture

1шт.

7

87517823

BEARING ASSY

1шт.

8

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

1шт.

12

87049205

WARNING DECAL

1000 RPM, English

1шт.

Not Illustrated

1шт.

12

87053157

DECAL

WARNING, 1000 RPM, French

1шт.

Not Included in Kit. Shown for Reference Only.

1шт.

13

87698723

YOKE

1000 RPM, 1-3/8" - 21 Splines

1шт.
