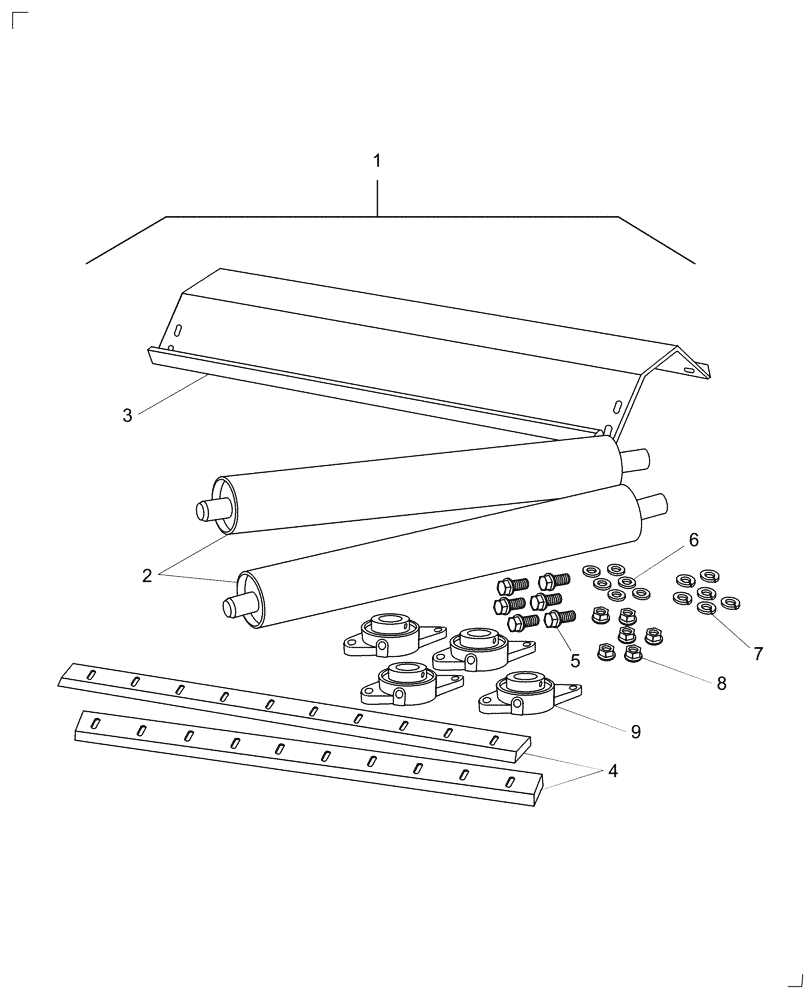

Запчасти Case IH RB564 (18.42) - DIA KIT, HIGH MOISTURE (18) - ACCESSORIES

1

87725798

KIT

High Moisture, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87582950

ROLL

2шт.

3

87534300

SUPPORT

1шт.

4

86637004

SCRAPER BLADE

2шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

9

87603065

BEARING ASSY,40mm ID

4шт.
