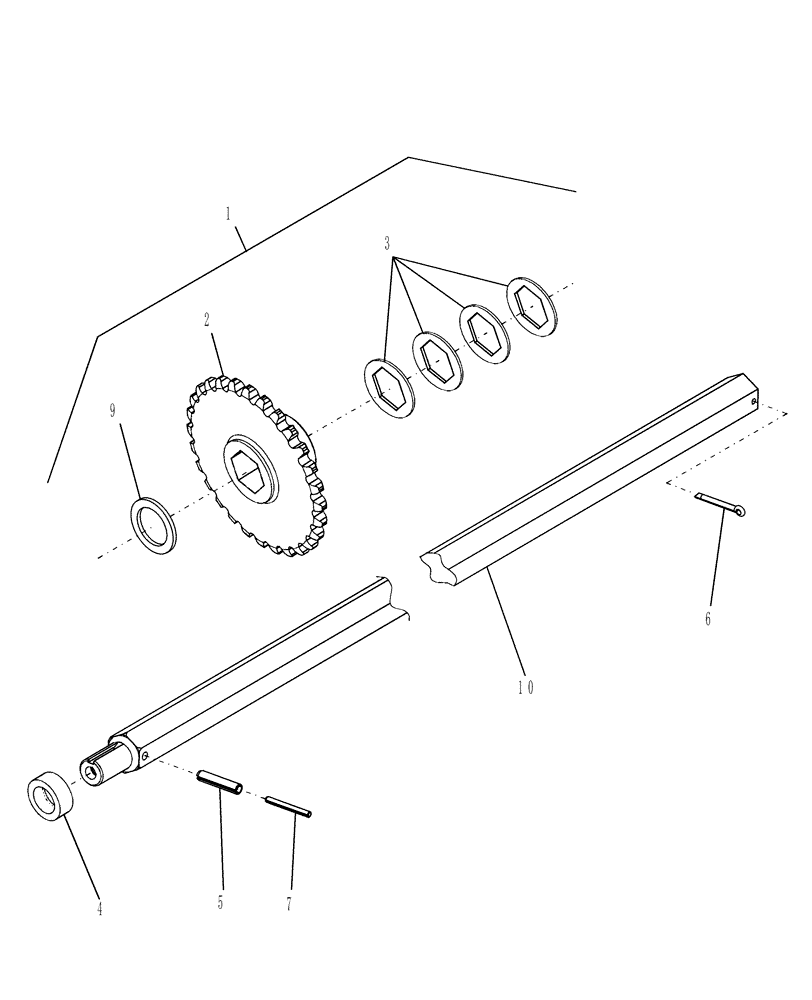

Запчасти Case IH RB564 (18.39) - DIA KIT, SLEDGE DIRECT DRIVE (18) - ACCESSORIES

1

87377590

DIA KIT, HARVESTER

Sledge Direct Drive, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87056511

SPROCKET

28T

1шт.

3

87056525

WASHER

Hex ID

4шт.

4

87056526

SPACER

29.5 ID x 45 OD x 18 Tk.

1шт.

5

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

6

87400

COTTER PIN,3/16" x 2"

1шт.

7

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

9

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

2шт.

10

87056503

SHAFT

1шт.
