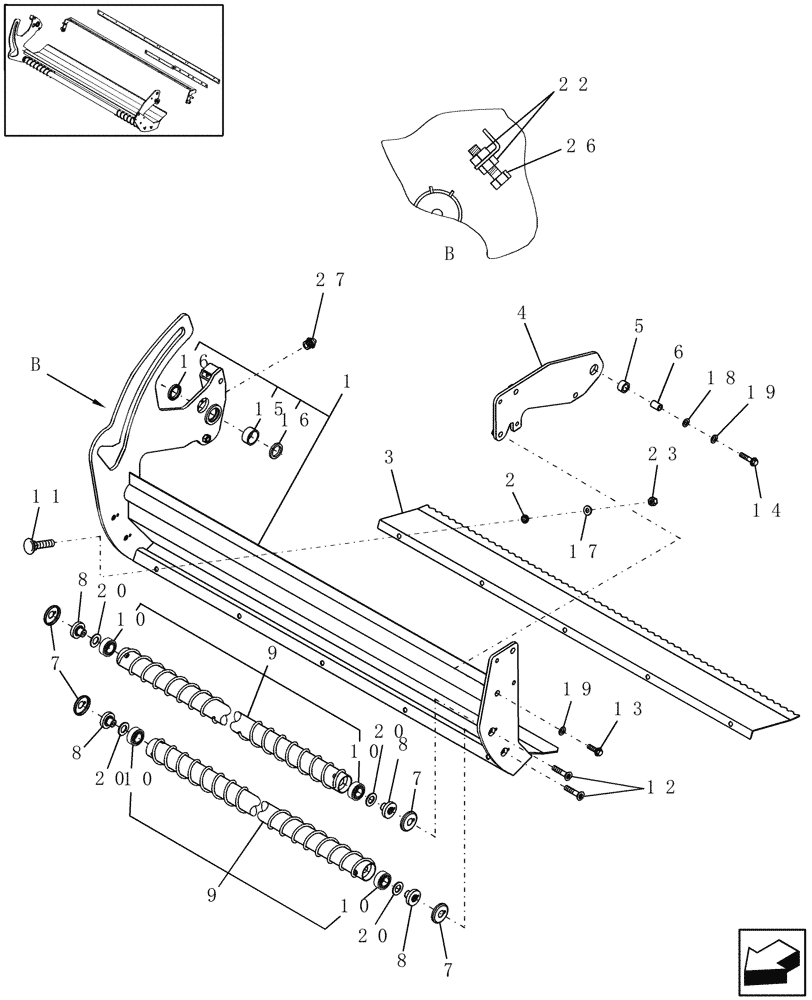

Запчасти Case IH RB564 (15.78) - DUCKBILL (15) - KNOTTER /WRAPPER

1

86621856

GUIDE

Duckbill

1шт.

2

87577038

RUBBER WASHER,10.5mm ID x 20mm OD x 6.35mm Thk

5шт.

3

87620705

BAFFLE

1шт.

4

86622388

ARM

1шт.

5

65957

BUSHING,18.23mm ID x 28.61mm OD x 15.75mm W

1шт.

6

255189

SPACER

1шт.

7

86622552

SHIELD

4шт.

8

86517336

SUPPORT

4шт.

9

86593851

ROLL

Spreader

2шт.

10

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

2шт.

11

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

5шт.

12

280760

HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"

4шт.

13

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

14

844-12050

BOLT,Hex, M12 x 50mm, Cl 8.8

1шт.

15

86629037

NEEDLE BEARING,25.58mm ID x 34.92mm OD x 19.05mm W

1шт.

16

86629038

SEAL

2шт.

17

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

5шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

20

794034

WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk

1-1/8" OD x .060" Thk

1шт.

22

825-1412

NUT,M12, Cl 8

2шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

26

309086

BOLT,Hex, M12 x 60, 8.8, Full Thd

1шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
