(15.06) - ELECTRIC TWINE WRAP, SHIELDS

Запчасти Case IH RB564 (15.06) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER

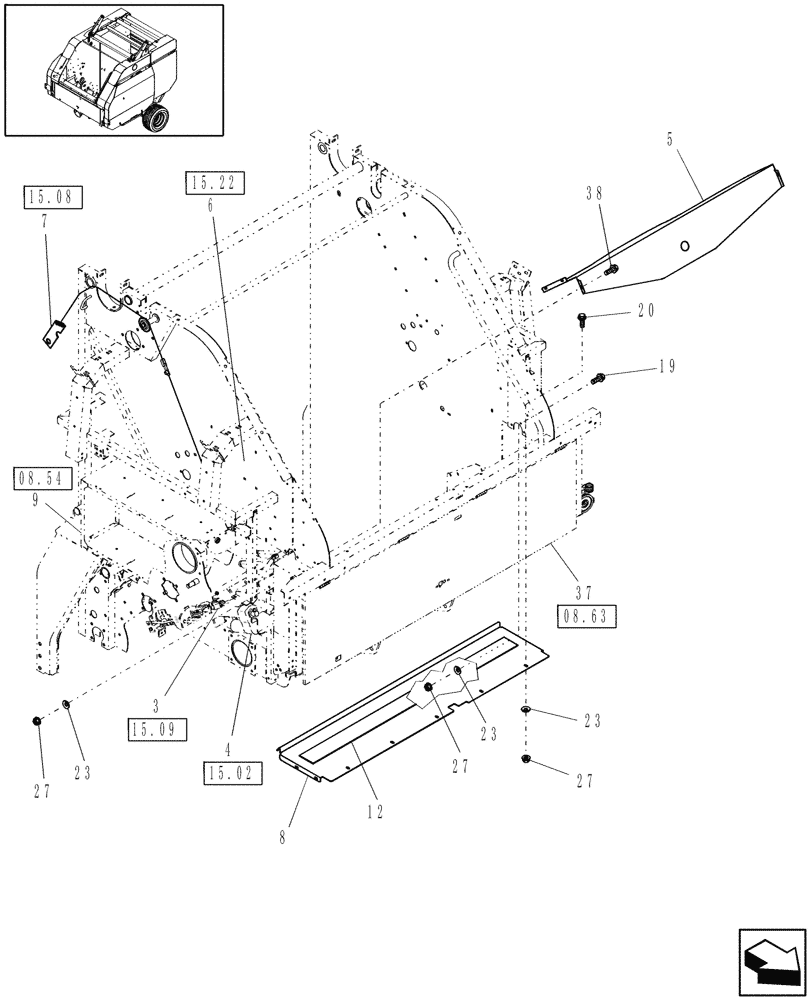

Схема запчастей Case IH RB564 - (15.06) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER
15.22
23
38
27
6
19
37
8
3
7
23
5
23
4
27
12
9
27
20
08.54
08.63
15.09
15.08
15.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

0C

ORDER COMPONENTS

Twine Counter

1шт.

4

0C

ORDER COMPONENTS

Electric Wrap, Twine

1шт.

5

87048341

SHIELD

1шт.

6

0C

ORDER COMPONENTS

Indicator

1шт.

7

0C

ORDER COMPONENTS

Electric Wrap Trip

1шт.

8

87515841

LOAD DECK

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

12

86643976

ANTI-SKID STRIP

Safety, 4" x 56"

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

5шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

27

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

14шт.

37

87638748

DOOR

Twine, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
