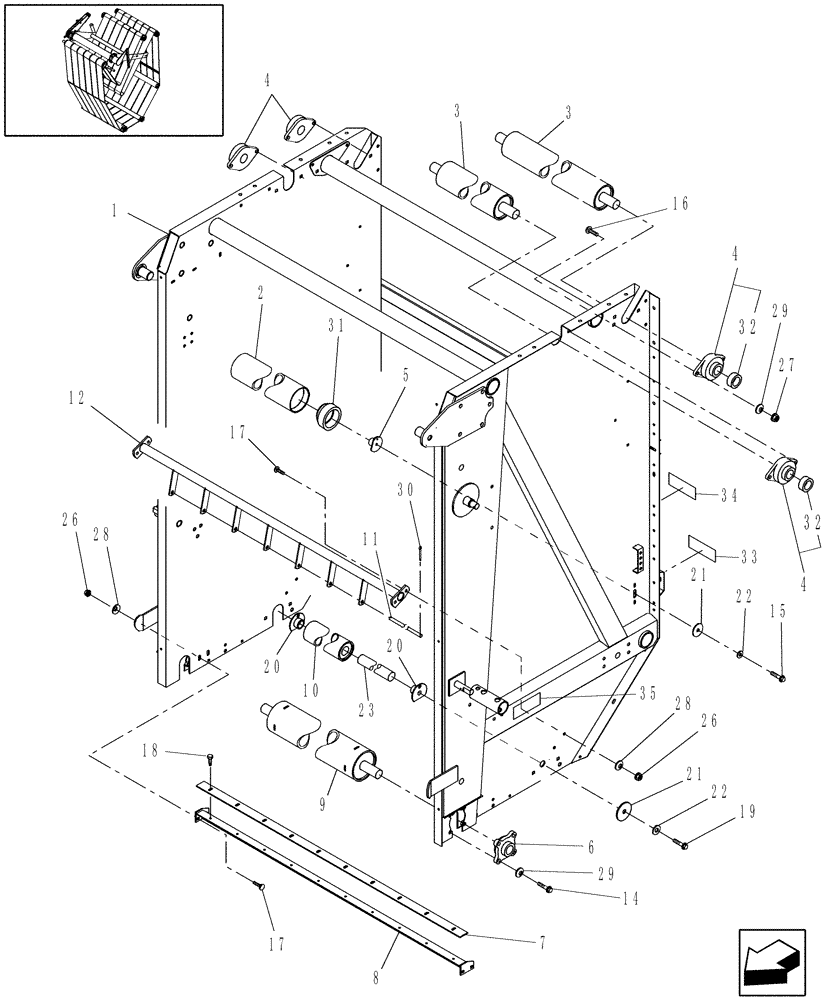

Запчасти Case IH RB564 (14.46) - TAILGATE & ROLLS (14) - BALE CHAMBER
№
Артикул
Название
Примечание
Количество
1
87019775
TAILGATE
1шт.
2
86502853
ROLLER
Tailgate, Middle, Serial Range: -YDN179980
1шт.
2
84601407
ROLL
Tailgate, Middle, Start Serial: YDN179981
1шт.
3
86599036
ROLL
Tailgate, Idler, Serial Range: -YCN172444
2шт.
3
86599036
ROLL
Tailgate, Idler, Start Serial: YCN172445
1шт.
3
84561456
ROLL
Tailgate, Idler, Rubber Guide, Start Serial: YCN172445
1шт.
4
86590751
BEARING ASSY,40mm ID
Includes: Ref. 32
4шт.
5
86501067
SUPPORT
2шт.
6
86590753
BEARING ASSY
2шт.
7
86636769
SCRAPER BLADE
1шт.
8
86626134
SUPPORT
1шт.
9
87372981
ROLL
1шт.
10
9842173
ROLLER
Tailgate, Bottom, Includes: Ref. 36
1шт.
11
9621329
ROD
1шт.
12
86626133
GUIDE
Belt, Rear
1шт.
14
614-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
8шт.
15
814-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
2шт.
16
811-12040
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
8шт.
18
381014
SCREW,Flng, M8 x 16mm
Self-Tapping, M8 x 1.25 x 16
10шт.
19
43260
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
2шт.
20
86521602
SUPPORT
2шт.
21
29684
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
17/32" ID x 2" OD x 3/16" Thk
4шт.
23
9608117
SHAFT
1шт.
26
825-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 8
8шт.
27
825-1412
NUT,M12, Cl 8
12шт.
29
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
16шт.
30
432-812
COTTER PIN,3/4" OAL x 1/8" W
2шт.
31
86500662
BEARING ASSY
2шт.
Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately
1шт.
32
563733
COLLAR
Lock
4шт.
33
86547781
REFLECTOR,RED
Red Retroreflective
2шт.
34
86631516
WARNING DECAL
English
1шт.
34
86632799
DANGER DECAL
WARNING, French
1шт.
35
86631519
DANGER DECAL
English
3шт.
35
86632802
DECAL
DANGER, French
3шт.
36
9845576
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
, Serial Range: -YDN179980
2шт.
Not Illustrated
1шт.
36
84259867
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
, Start Serial: YDN179981
2шт.
Not Illustrated
1шт.
Выбрано товаров: 42
