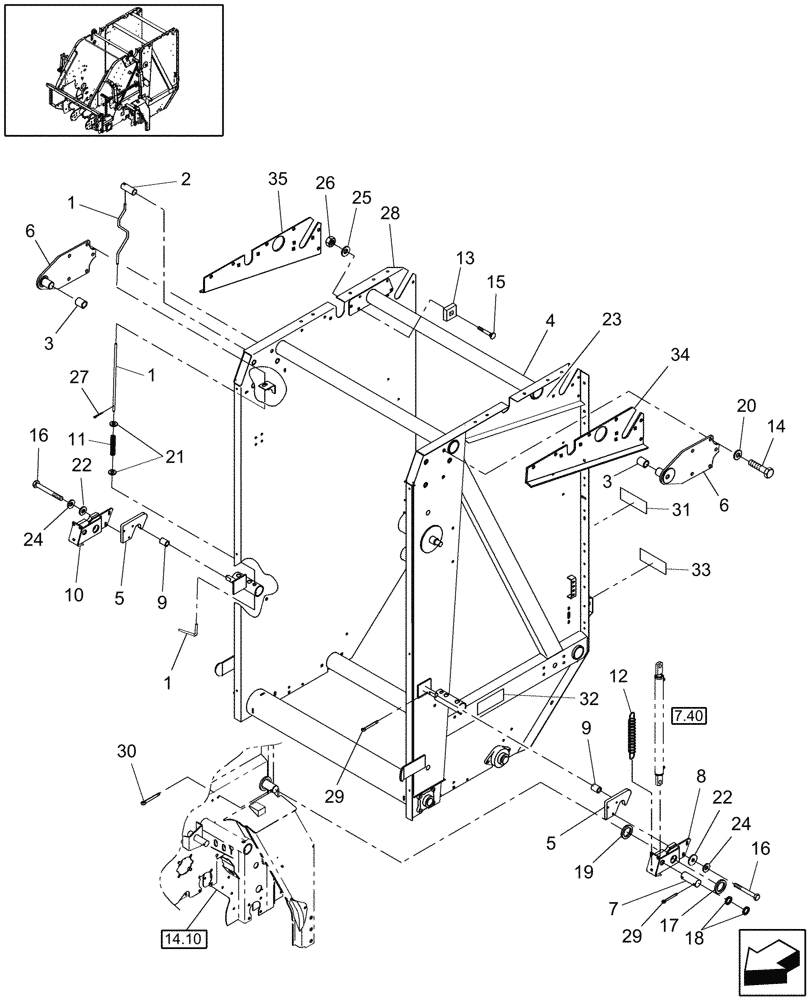

Запчасти Case IH RB564 (14.39) - TAILGATE & TAILGATE LATCH (14) - BALE CHAMBER

1

86637214

ROD

1шт.

2

9845448

PIN,31.7mm OD x 83.7mm L

1шт.

3

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

4

87019775

TAILGATE

1шт.

5

87709061

LATCH

Hook, Serial Range: -Y7N043141

2шт.

Adjustable Tailgate Latch

1шт.

5

84217007

HOOK

Hook, Start Serial: Y7N043142

2шт.

6

86637243

PLATE ASSY.

2шт.

7

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

8

87648708

LATCH

LH, Serial Range: -Y7N033603

8шт.

Non-Adjustable Tailgate Latch

1шт.

8

87708326

LATCH

LH, Serial Range: Y7N033604-Y7N043141

1шт.

Adjustable Tailgate Latch

1шт.

8

84216964

LATCH

LH, Start Serial: Y7N043142

1шт.

9

9829271

SPACER

2шт.

10

86624248

LATCH

RH, Serial Range: -Y7N033603

10шт.

Non-Adjustable Tailgate Latch

1шт.

10

87708328

LATCH

RH, Serial Range: Y7N033604-Y7N043141

1шт.

Adjustable Tailgate Latch

1шт.

10

84216997

LATCH

RH, Start Serial: Y7N043142

1шт.

11

86628108

SPRING

Compression

1шт.

12

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

Extension

2шт.

13

86636768

PLATE

2шт.

14

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

10шт.

15

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

17

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

1шт.

18

495-11106

WASHER,1", SAE

2шт.

19

86603125

WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk

2-3/8" OD

4шт.

20

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

Special, 1-1/8" OD

10шт.

21

495-21044

WASHER,3/8"

2шт.

22

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

6шт.

23

86624699

SUPPORT

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

26

9706685

NUT,M12 x 1.75, Cl 8

1шт.

27

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

28

86624701

SUPPORT

RH

1шт.

29

432-1228

COTTER PIN,3/16" x 1 3/4"

6шт.

30

88182

COTTER PIN,1/4" OD x 2" L

2шт.

31

86631516

WARNING DECAL

English

1шт.

31

86632799

DANGER DECAL

WARNING, French

1шт.

32

86631519

DANGER DECAL

English

3шт.

32

86632802

DECAL

DANGER, French

3шт.

33

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

34

86624699

SUPPORT

LH

1шт.

Welding Required

1шт.

35

86624701

SUPPORT

RH

1шт.

Welding Required

1шт.
