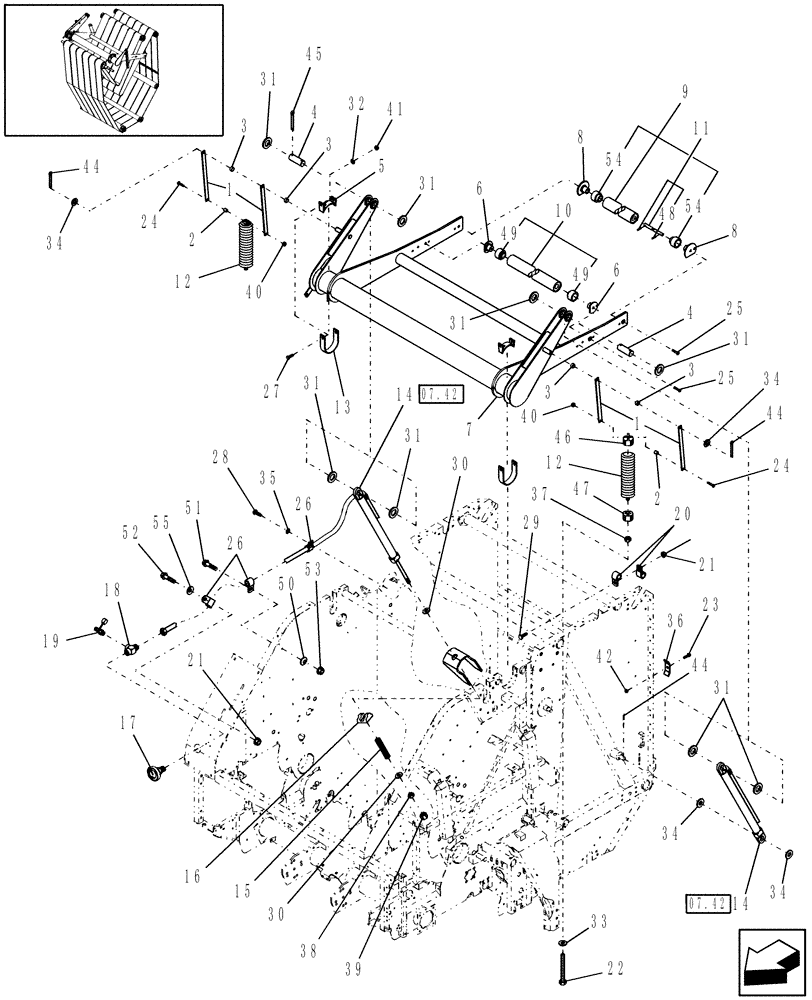

Запчасти Case IH RB564 (14.33) - BELT TENSION (14) - BALE CHAMBER

1

86637229

LINK,489mm L

4шт.

2

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

.86" L, HT, Plated

2шт.

3

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

.66" L

4шт.

4

86637228

PIN,38.1mm OD x 91.5mm L

2шт.

5

86636552

BEARING CAP

2шт.

6

86516321

SUPPORT

2шт.

7

86640113

ARM

1шт.

8

86516322

SUPPORT

2шт.

9

86500664

ROLLER

Rear Serpentine

1шт.

10

9842174

ROLLER

Front Serpentine, Incl 54, Serial Range: -YDN179980

1шт.

10

84600584

ROLL

, Start Serial: YDN179981

1шт.

11

9608250

SHAFT

1шт.

12

621339

SPRING

Use W/ Ref. 46 & 47

2шт.

13

9617265

BAND

2шт.

14

NSS

NOT SOLD SEPARAT

Hydraulics

1шт.

15

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

16

226131

PIVOT

1шт.

17

857072

GAUGE

3,000 PSI, Bale Density

1шт.

18

86627339

HYD CONNECTOR

-04, Female, NPTF

1шт.

19

9845229

COUPLING

Male

1шт.

Female Pipe Coupler is 9845231. Refer to Repair Manual.

1шт.

20

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

22

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

23

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

24

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

2шт.

25

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

Cap, HH, CL 8.8 P M12 x 30, 6.5 Head Height

4шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

27

844-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 8.8

4шт.

28

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

2шт.

29

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

30

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

Hardened, .164" Thk

2шт.

31

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

1-17/32" ID x 2-3/8" OD

8шт.

32

495-11053

WASHER,1/2", SAE

4шт.

33

495-21081

WASHER,3/4"

2шт.

34

495-11106

WASHER,1", SAE

4шт.

35

495-21038

WASHER,5/16"

4шт.

36

86637242

CLAMP

2шт.

37

425-1012

NUT,3/4"-10, G5

2шт.

38

425-1014

NUT,7/8"-9, G5

1шт.

39

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

40

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

41

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

42

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

44

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

45

432-1232

COTTER PIN,3/16" OD x 2" L

4шт.

46

854482

SPRING NUT

Spring

2шт.

47

143672

SPRING NUT

Spring

2шт.

48

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

49

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

50

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

51

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

52

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

53

825-1406

NUT,M6, Cl 8

1шт.

54

86500662

BEARING ASSY

Incl 56, Serial Range: -YDN179980

2шт.

55

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

56

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

, Serial Range: -YDN179980

2шт.

Not Illustrated

1шт.

56

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

, Start Serial: YDN179981

2шт.

Not Illustrated

1шт.
