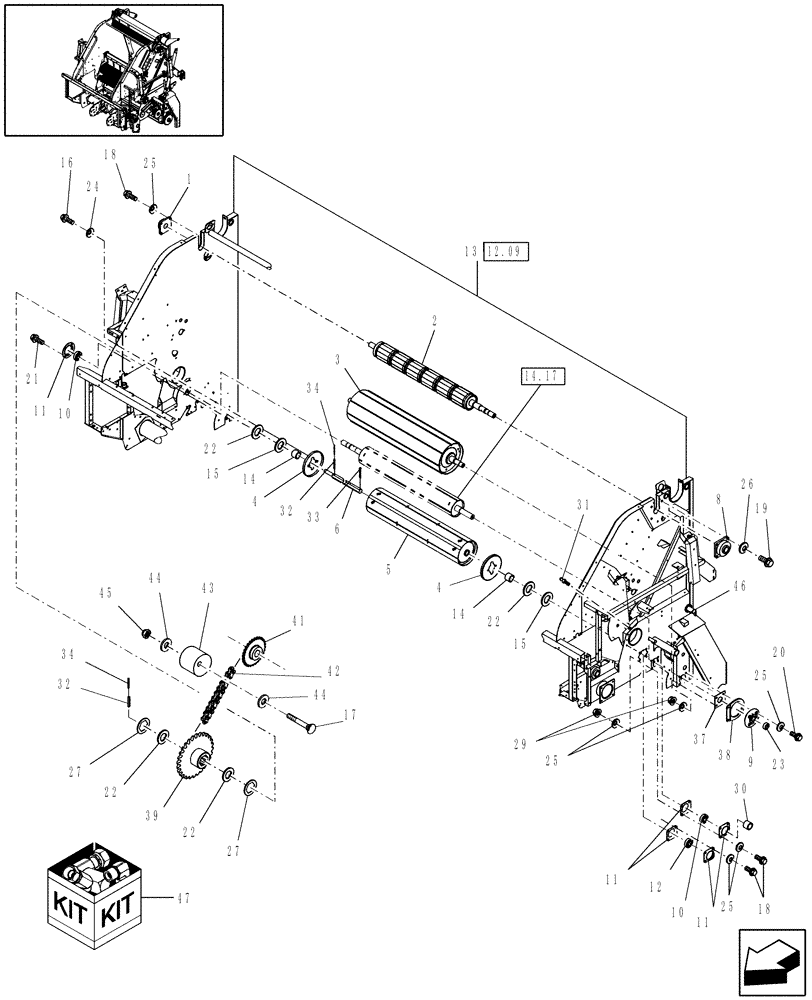

Запчасти Case IH RB564 (14.10) - MAIN FRAME & ROLLS (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1.772" ID

1шт.

2

87027871

ROLL

Drive

1шт.

3

87392936

ROLLER ASSY.

Floor, Includes: Square Rods

1шт.

4

87602845

SHIELD

18mm Flange

2шт.

5

87396562

ROLL

Fixed

1шт.

6

87056503

SHAFT

Use with Fixed Roll with Square Rods

1шт.

8

86590752

BEARING ASSY

1.969" ID

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately

1шт.

10

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

& Collar, Serial Range: -YAN045531

2шт.

10

86610638

BEARING ASSY,45mm ID

, Start Serial: YAN045532

1шт.

10

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

, Start Serial: YAN045532

1шт.

Not Illustrated

1шт.

11

86837676

FLANGED BEARING

, Serial Range: -YAN045531

8шт.

11

86837676

FLANGED BEARING

, Start Serial: YAN045532

4шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

13

87619699

FRAME

Main, Bale Command Units

1шт.

13

87630609

FRAME

Main, Twine Units

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

18шт.

19

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

1шт.

23

87384472

COLLAR

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

87056525

WASHER

2шт.

29

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

30

86976003

SPACER

1шт.

31

571382

LUBE NIPPLE,1/4"-28 NPT x 1.62" lg

2шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

34

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

37

86602143

WEAR PLATE

1шт.

Welding Required

1шт.

38

86602047

PIVOT PLATE

2шт.

39

87660324

SPROCKET

15T, RC80, Sledge Drive

1шт.

40

87554101

ROLLER ASSY.

1шт.

41

87660325

SPROCKET,15T

1шт.

42

87707866

CHAIN

Includes: Ref. 48 & 49

1шт.

43

86514717

IDLER WHEEL

1шт.

44

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

45

100038

NUT,M12 x 1.75, Cl 8

1шт.

46

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

47

9840158

KIT

Floor Traction, 3" x 44"

1шт.

Optional Kit used with Ref. 3, when Core Staring Problems Occur.

1шт.

48

86643889

CONNECTING LINK

1шт.

Not Illustrated

1шт.

49

86977428

CONNECTING LINK

Offset

1шт.

Not Illustrated

1шт.
