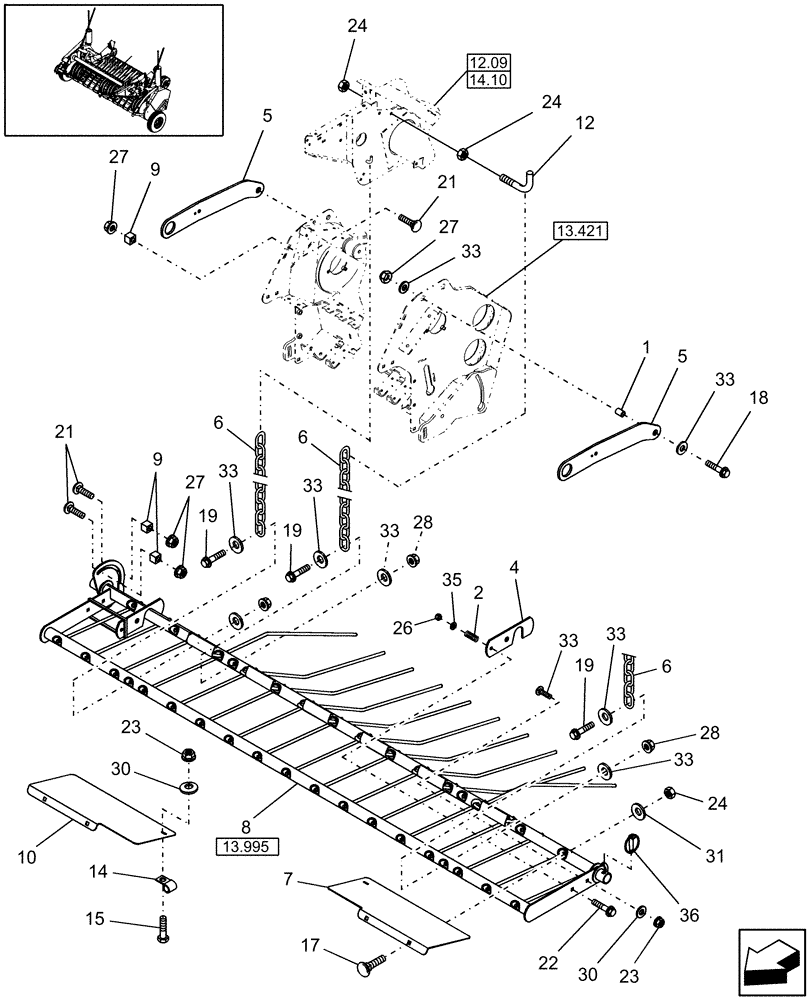

Запчасти Case IH RB564 (13.980[01]) - 2M WIDE PICKUP, ROLLER WINDGUARD, YCN174405 & PRIOR (13) - FEEDER

1

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

2

86635755

SPRING,15.88mm OD x 28.58mm L

2шт.

4

87043776

RETAINER

2шт.

5

87054235

ARM

2шт.

6

87027237

CHAIN,18 Links x 37.2mm = 670mm L

4шт.

7

87046828

PLATE

LH

1шт.

8

0C

ORDER COMPONENTS

Windguard

1шт.

9

86603107

NUT

Square

4шт.

10

87049395

PLATE

RH

1шт.

12

87363515

SPECIAL BOLT

2шт.

14

87051581

CLAMP

3/8" x 1/4" Bolt, .050" Tk.

2шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

17

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

18

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

19

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

20

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

21

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

4шт.

22

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

23

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

26

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

27

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

28

231-4146

NUT,3/8"-16, GB

4шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

33

495-21044

WASHER,3/8"

12шт.

35

495-11034

WASHER,5/16", SAE

2шт.

36

87056822

PIN

Klik

2шт.
