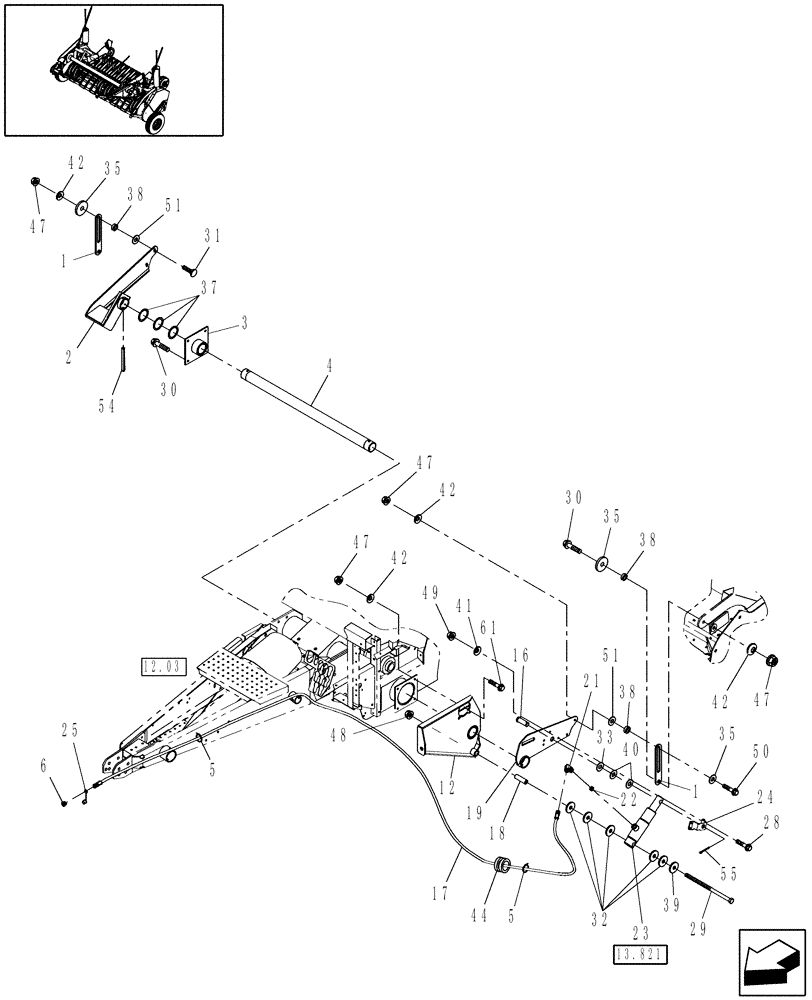

Запчасти Case IH RB564 (13.820) - 2M WIDE PICKUP, PICKUP LIFT, STUFFER FEEDER, NORTH AMERICA (13) - FEEDER

1

86620532

STRAP

2шт.

2

87728772

LIFT ARM

1шт.

3

86620245

MOUNTING PARTS

1шт.

4

86621139

TUBE,60.50 mm OD x 1957.30 mm L

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

6

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

1шт.

12

86620230

MOUNTING PARTS

1шт.

16

514112

PIN

1" x 2-3/4"

1шт.

17

86836356

HOSE,9.53mm ID x 4673.6mm L, SAE 100R17

1шт.

18

87016310

SPACER

1шт.

19

86620277

ARM

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring, 3/8" Tube

1шт.

22

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

1шт.

23

87019166

HYDRAULIC CYLINDER

Pickup Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

24

86705824

CHANNEL

Pickup Lift

1шт.

25

87017806

DUST CAP,Green

1шт.

28

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

29

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

1шт.

30

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

31

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

1шт.

32

86611401

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.

33

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

1шт.

35

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

37

122257

WASHER,61.9mm ID x 77.79mm OD x 1.2mm Thk

2-3/8"

3шт.

38

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

2шт.

39

86637848

WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk

1-1/2" OD, Plated

1шт.

40

495-11106

WASHER,1", SAE

1шт.

41

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

42

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

44

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1-3/4" OD x 1" ID

1шт.

47

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

10шт.

48

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

49

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

50

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

51

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

2шт.

54

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

2шт.

55

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

56

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

61

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.
