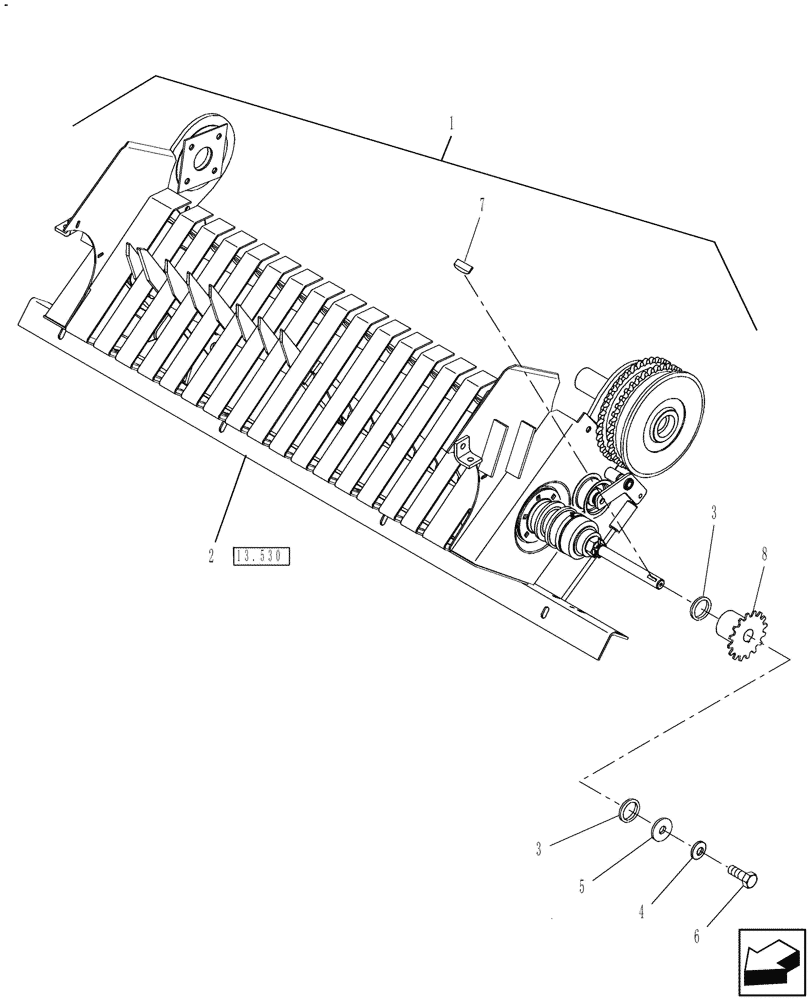

Запчасти Case IH RB564 (13.531) - STUFFER FEEDER, SERVICE (13) - FEEDER

1

84329254

PICK-UP

Service Stuffer Feeder

1шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder

1шт.

3

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

5

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

80768

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

8

87725037

SPROCKET

17T, RC50

1шт.
