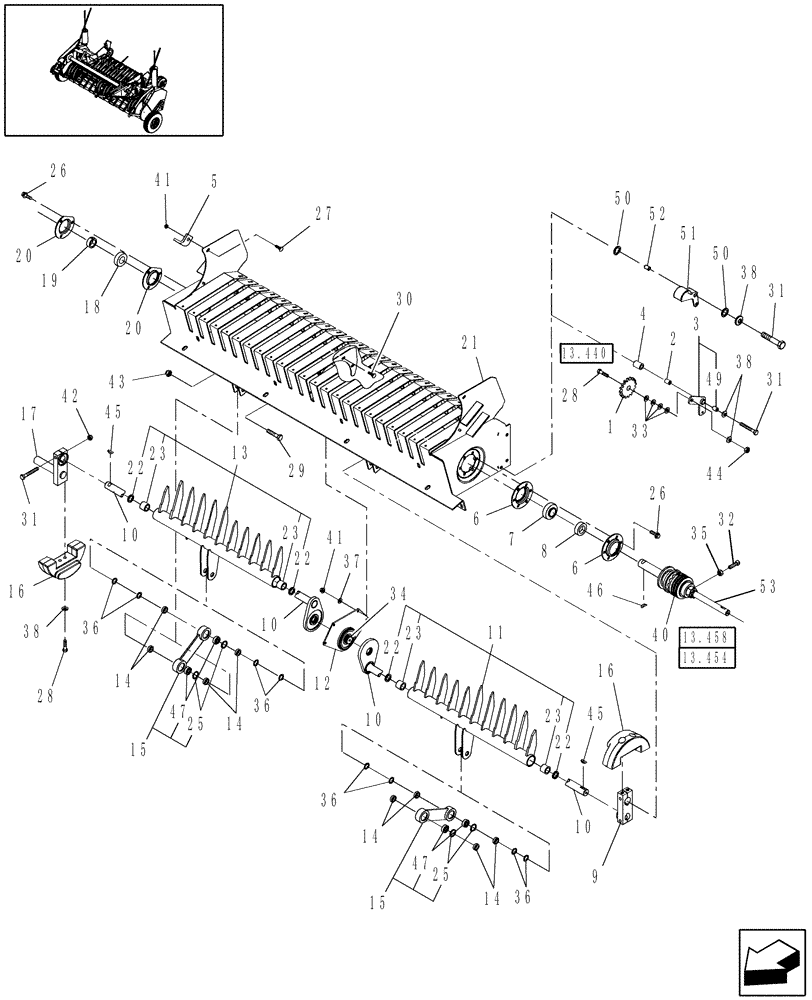

Запчасти Case IH RB564 (13.530[01]) - STUFFER FEEDER, P.I.N. YBN171039 & PRIOR (13) - FEEDER

1

86627870

DRIVEN SPROCKET,15T

Idler, 15T

1шт.

2

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

3/4" OD x 1-1/16" Lg.

1шт.

3

86636654

ARM

1шт.

4

86705271

SPACER,13.5mm ID x 25.4mm OD x 34mm L

1" OD x 1-1/16" Lg.

1шт.

5

66463

BRACKET

4шт.

6

138820

FLANGED BEARING

Bearing

2шт.

7

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

8

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

Locking, Includes: Set Screw

1шт.

9

86625655

ARM

LH

1шт.

10

87051781

SHAFT

2шт.

11

87042782

TUBE,42 mm ID x 50.80 mm OD x 705 mm L

LH

1шт.

12

87051855

MOUNTING PARTS

Center Bearing

1шт.

Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately

1шт.

13

87042783

TUBE,42 mm ID x 50.80 mm OD x 705 mm L

RH

1шт.

14

718013

SPACER

8шт.

15

87043492

ARM ASSY.

2шт.

16

86627115

WEIGHT

Counter

2шт.

17

87515101

CRANK

RH

1шт.

18

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

Locking, W/ Set Screw

1шт.

19

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1-1/4" ID x 2.44" OD

1шт.

19

84484181GV

BEARING ASSY

Value, Ball Bearing

1шт.

20

87758679

FLANGED BEARING

2шт.

21

87046282

FRAME

1шт.

22

86606367

SEAL,30mm ID x 42mm OD x 7mm Thk

4шт.

23

86606298

BUSHING,30.12mm ID x 42.11mm OD x 42mm L

4шт.

24

87414

LUBE NIPPLE,1/4" - 28

2шт.

25

66967

SNAP RING,1.75", Int, #175

4шт.

26

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

9шт.

27

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

28

9706693

BOLT,M12 x 60mm, Cl 8.8

5шт.

29

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

30

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

31

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

32

393599

SET SCREW,M10 x 25mm, Cl 12.9

, Start Serial: Y9N043085

1шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

34

87051779

SHAFT

1шт.

35

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: Y9N043085

1шт.

36

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

3/4"ID x 1-1/8"OD

8шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

39

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

2шт.

40

0C

ORDER COMPONENTS

Clutch, Jaw, Serial Range: -Y9N043084

1шт.

40

0C

ORDER COMPONENTS

Clutch, Radial Pin, Start Serial: Y9N043085

1шт.

41

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

42

412672

NUT,Hex, M12 x 1.75, Cl 10

3шт.

43

9626598

NUT,3/4"-10, GB

4шт.

44

9706685

NUT,M12 x 1.75, Cl 8

1шт.

45

87038548

WOODRUFF KEY

1шт.

46

87831

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

47

9807906

BALL BEARING,0.7504" ID x 1.7805" OD x 0.61"

4шт.

49

87040968

BUSHING

.752" ID x .875" OD x .750" Lg.

1шт.

50

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

3/ARшт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

51

87346700

ARM

Idler

1шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

52

87470734

SPACER

1шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

53

84173847

SHAFT

, Start Serial: Y9N043085

1шт.

54

84493033

CAP WASHER

2шт.
