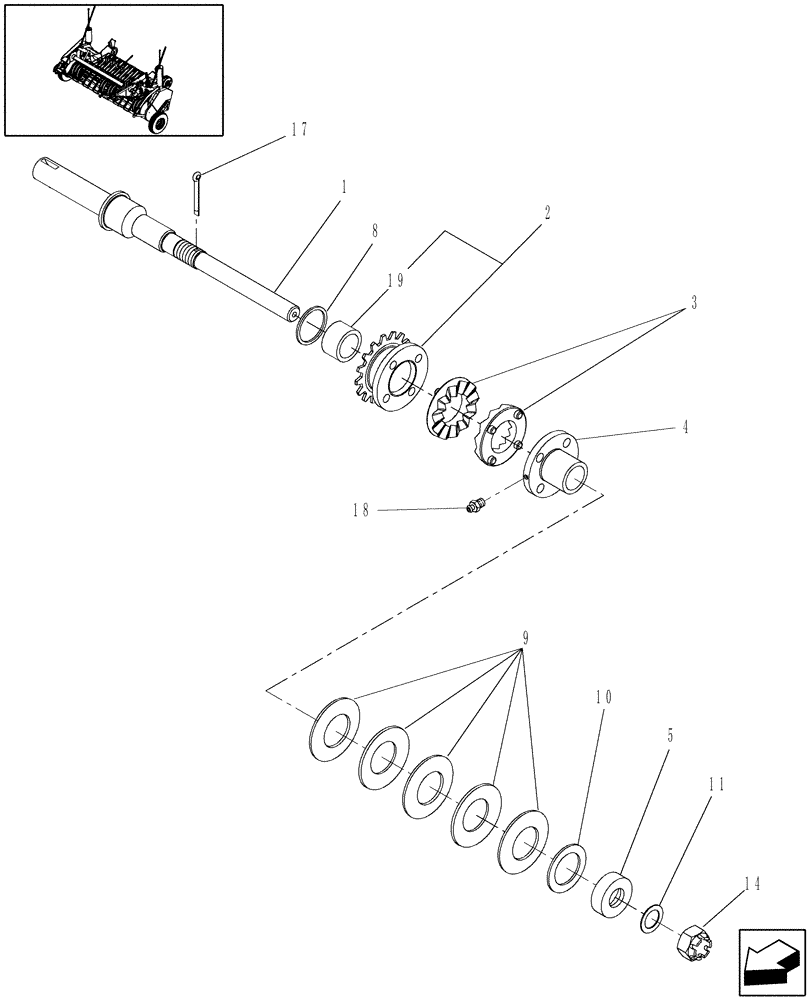

Запчасти Case IH RB564 (13.458) - 2M WIDE PICKUP, JAW CLUTCH (13) - FEEDER

1

87718114

SHAFT

Jaw Clutch, 2M Pickup

1шт.

2

87047932

SPROCKET

Includes: 15T Sprocket & Bushing

1шт.

3

714379

CLUTCH

2шт.

4

86637169

HUB

1шт.

5

9845592

RING

1шт.

8

87033387

WASHER,50.8mm ID x 60.3mm OD x 3.05mm Thk

1шт.

9

9822385

BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk

5шт.

10

166490

WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk

Hardened, 2"

1шт.

11

26558

WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk

Special

1шт.

14

280215

SLOTTED NUT,1 1/8"-12, G5

1шт.

17

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

18

88775

LUBE NIPPLE,1/4"-28

Straight, Short

1шт.

19

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.
