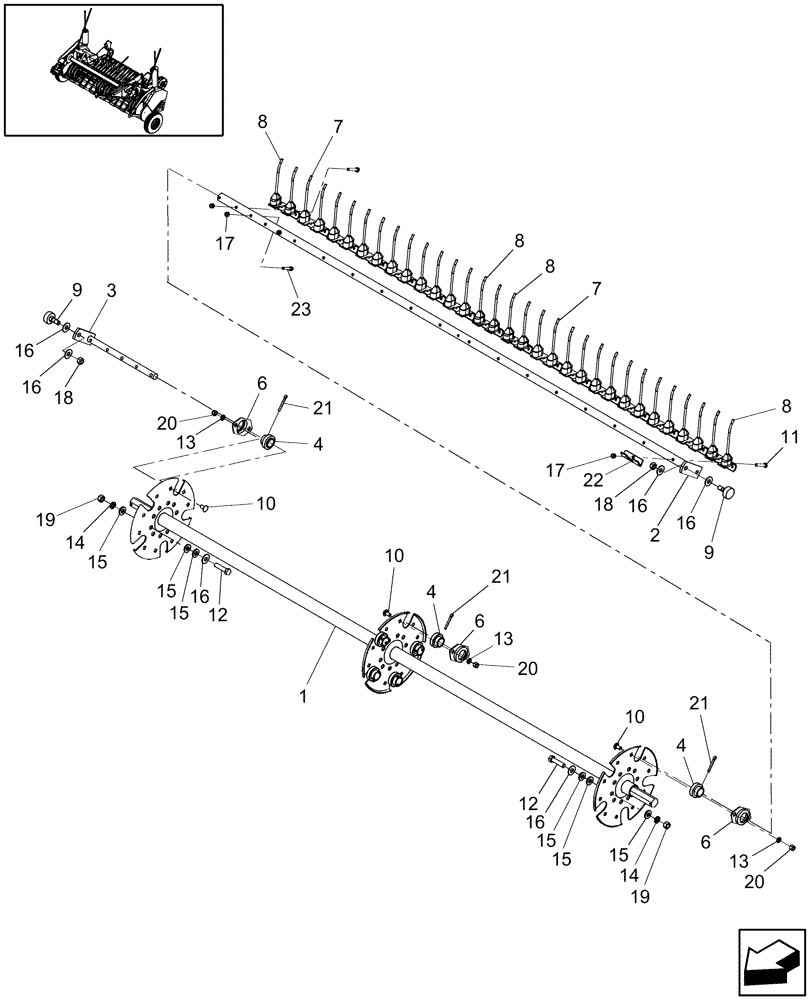

Запчасти Case IH RB564 (13.431[4]) - 2M WIDE PICKUP, REEL, STUFFER FEEDER, CORNSTALK BALER (13) - FEEDER

1

87732306

TINE BAR

1шт.

2

87653762

TINE BAR,2172.3mm L

5шт.

3

87024804

TINE BAR

5шт.

4

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

15шт.

6

54695

BEARING HOUSING

15шт.

7

9847572

TINE,2 Prongs, 96.52mm L

60шт.

8

84149171

TINE

20шт.

9

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

10шт.

10

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

30шт.

11

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

80шт.

12

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

10шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

30шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

30шт.

16

703960

WASHER

30шт.

17

86629544

NUT,5/16” – 18, GR B

90шт.

18

88130

NUT,1/2"-20, GC

10шт.

19

280431

NUT,1/2"-13, G5

10шт.

20

9637692

NUT,3/8"-16, GB

30шт.

21

136521

COTTER PIN,5.7mm OD x 44.45mm L

15шт.

22

84801578

STOP

80шт.

23

280702

HEX SOC SCREW,5/16 x 1-1/2"

10шт.
