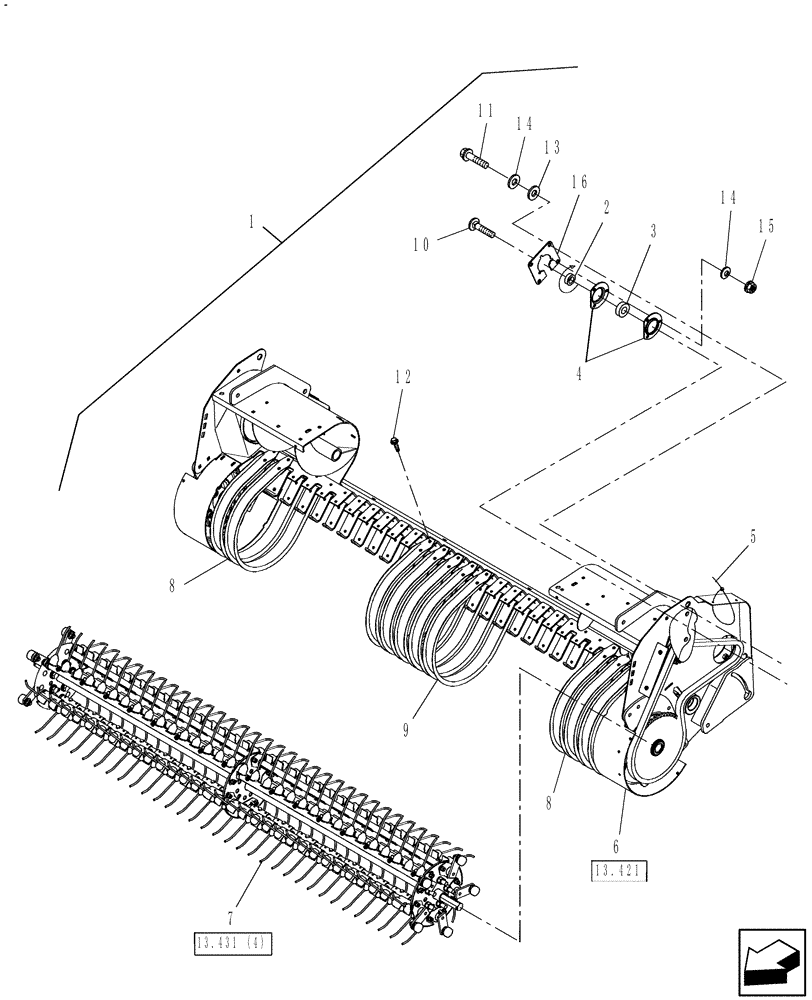

Запчасти Case IH RB564 (13.422) - 2M WIDE PICKUP, AUGER, SERVICE (13) - FEEDER

1

84329256

PICK-UP

2M WIDE, STUFFER FEEDER, Sevice

1шт.

2

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

1шт.

3

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

1шт.

4

87758679

FLANGED BEARING

2шт.

5

646223

STRAP,8.0" L

1шт.

6

0C

ORDER COMPONENTS

1шт.

7

0C

ORDER COMPONENTS

1шт.

8

86643381

GUARD

10шт.

9

87055363

GUARD ASSY.

21шт.

10

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

11

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

12

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

103шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

16

84173517

PLATE

1шт.
