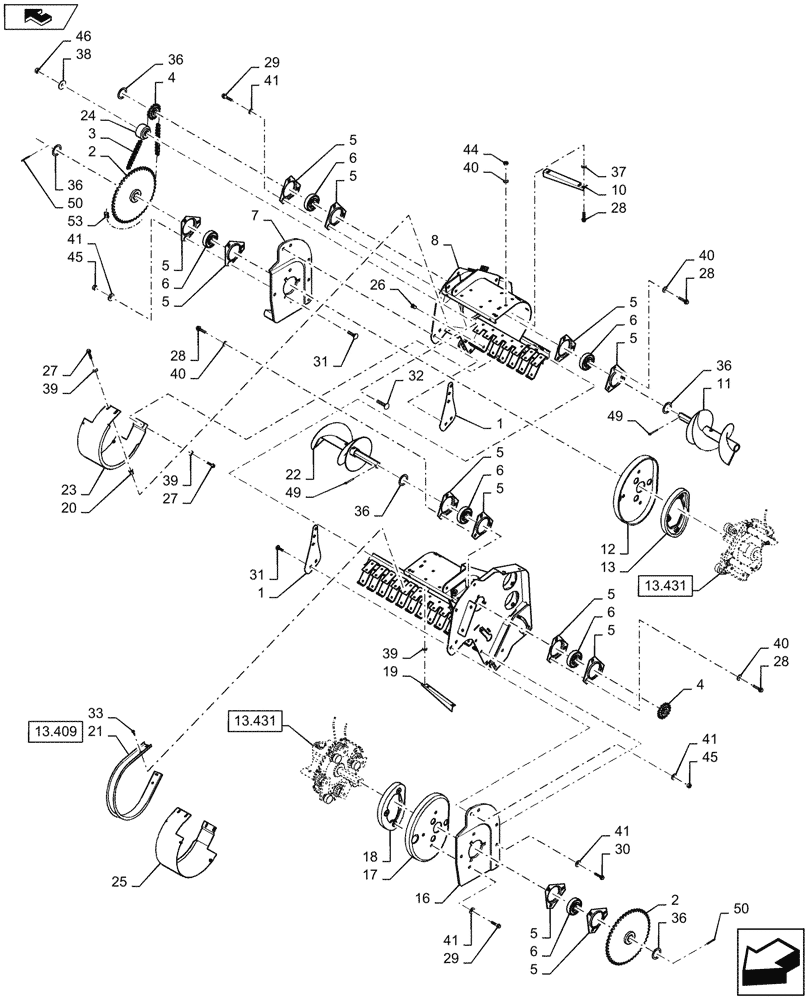

Запчасти Case IH RB564 (13.421) - 2M WIDE PICKUP W/ STUFFER FEEDER, AUGER (13) - FEEDER

1

47361794

MOUNT

, Start Serial: YCN174406

2шт.

2

86624713

SPROCKET

48T, Go to Fig. 13.409 for 3rd sprocket

2шт.

3

87355271

CHAIN

Roller, #50, 77 Pitches

1шт.

4

87037892

SPROCKET

13T, RC 50, Go to Fig. 13.409 for 3rd sprocket

2шт.

5

86620026

FLANGED BEARING

12шт.

6

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

6шт.

7

87054955

SUPPORT

RH

1шт.

8

87515478

PICK-UP

Frame

1шт.

10

86633239

ANGLE

RH

1шт.

11

87045426

AUGER

RH

1шт.

12

87036227

CAM

RH, Outer

1шт.

13

87036226

CAM

RH, Inner

1шт.

16

87054954

SUPPORT

LH

1шт.

17

87032200

CAM

LH, Outer

1шт.

18

87032003

CAM

LH, Inner

1шт.

19

86633238

ANGLE

LH

1шт.

20

86610198

INSERT,M6 x 1

Threaded, M6

4шт.

21

87055363

GUARD ASSY.

21шт.

21

86643381

GUARD

10шт.

22

87045424

AUGER

LH

1шт.

23

86626559

GUARD

End, RH

1шт.

24

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

1шт.

25

86625888

GUARD

End, LH

1шт.

26

86610199

INSERT

Threaded, M6

4шт.

27

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

8шт.

28

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

6шт.

29

9804262

BOLT,M10 x 39.2mm, Cl 8.8

18шт.

30

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

31

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

12шт.

32

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

33

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

Type F

124шт.

34

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

36

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

1шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

38

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

44

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

45

9804278

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

46

86000441

NUT,M16 x 2.0, Cl 8

1шт.

49

164086

COTTER PIN

2шт.

50

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

52

42472

CONNECTING LINK

1шт.

Not Illustrated

1шт.

53

25816

OFFSET LINK

Roller, RC 50, Cotter Style

1шт.
