Запчасти Case IH RB554 (15.11) - TWINE ARM (15) - KNOTTER /WRAPPER

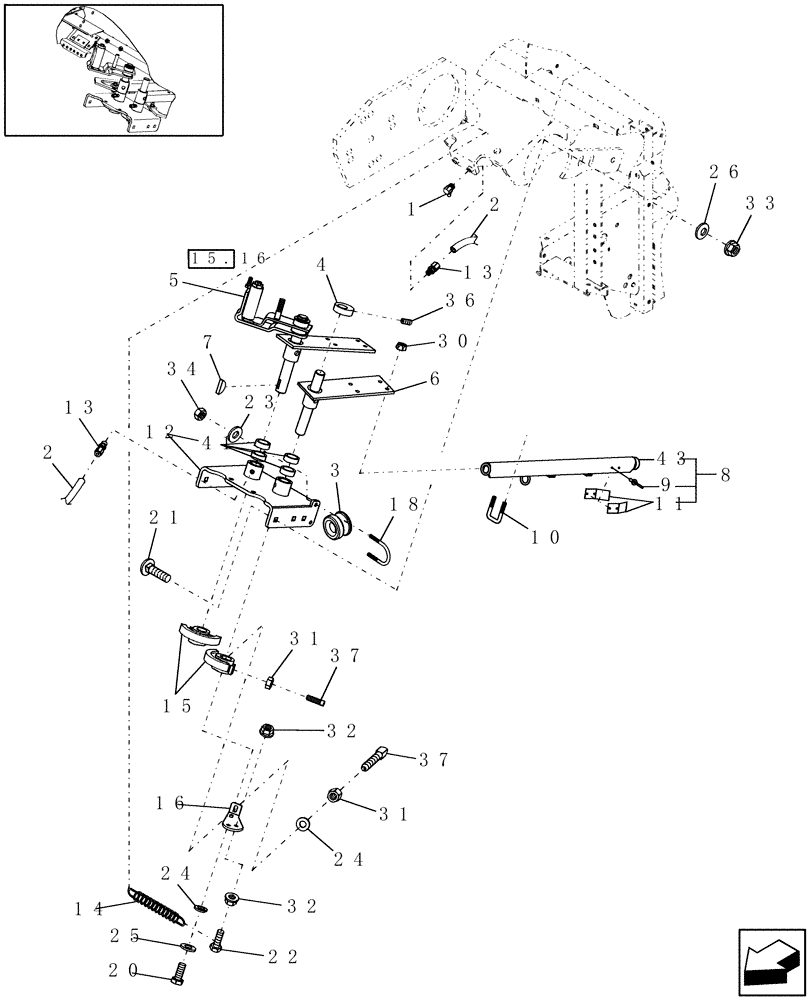

Схема запчастей Case IH RB554 - (15.11) - TWINE ARM (15) - KNOTTER /WRAPPER
36
32
14
21
11
41
33
6
26
5
7
23
4
1
12
13
15.16
37
8
30
34
9
24
25
32
20
18
37
31
16
15
10
2
3
2
31
43
22
24
13

Артикул

Название

Примечание

Количество

1

80719

LUBE NIPPLE,1/8" NPT

2шт.

2

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

1шт.

3

86543545

GUIDE

2шт.

4

86636636

COLLAR

Eccentric

1шт.

5

NSS

NOT SOLD SEPARAT

Drive Bracket

1шт.

6

86636778

PLATE

1шт.

7

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

8

84180990

CHANNEL

2шт.

9

86637656

RIVET,Pop, 1/8" x .337"

8шт.

10

229538

U-BOLT

G2, 5/16"-18 x 1-7/8"

4шт.

11

87609767

LEAF SPRING

4шт.

12

87653668

CHANNEL

Twine Arm

1шт.

13

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 39 & 40

2шт.

14

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

15

86636677

GEAR

2шт.

16

86633431

PLATE

1шт.

17

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Includes: Ref. 39 & 40

2шт.

18

28114

U-BOLT

#10-24 x 1-15/16"

2шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

21

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

22

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

24

495-11034

WASHER,5/16", SAE

2шт.

25

492-11031

LOCK WASHER,5/16"

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

30

231-4145

NUT,5/16"-18, GB

8шт.

31

9626568

JAM NUT,Jam, 5/16"-18, G2

4шт.

32

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

2шт.

33

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

34

88826

LOCK NUT,#10-24, GA

4шт.

36

86512758

SET SCREW,5/16" - 18 x 5/8"

Cup Pt

1шт.

37

88971

SET SCREW,5/16" - 18 x 1"

Cup Pt

4шт.

39

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

40

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.

41

182294

DRIVE BUSHING,25.1mm ID x 28.6mm OD x 25.4mm L

4шт.

42

87049604

TOOL

Twine Threading

1шт.

43

NSS

NOT SOLD SEPARAT

Twine Tube

2шт.

Выбрано товаров: 39
