(15.05) - ELECTRIC TWINE WRAP, SHIELDS

Запчасти Case IH RB554 (15.05) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER

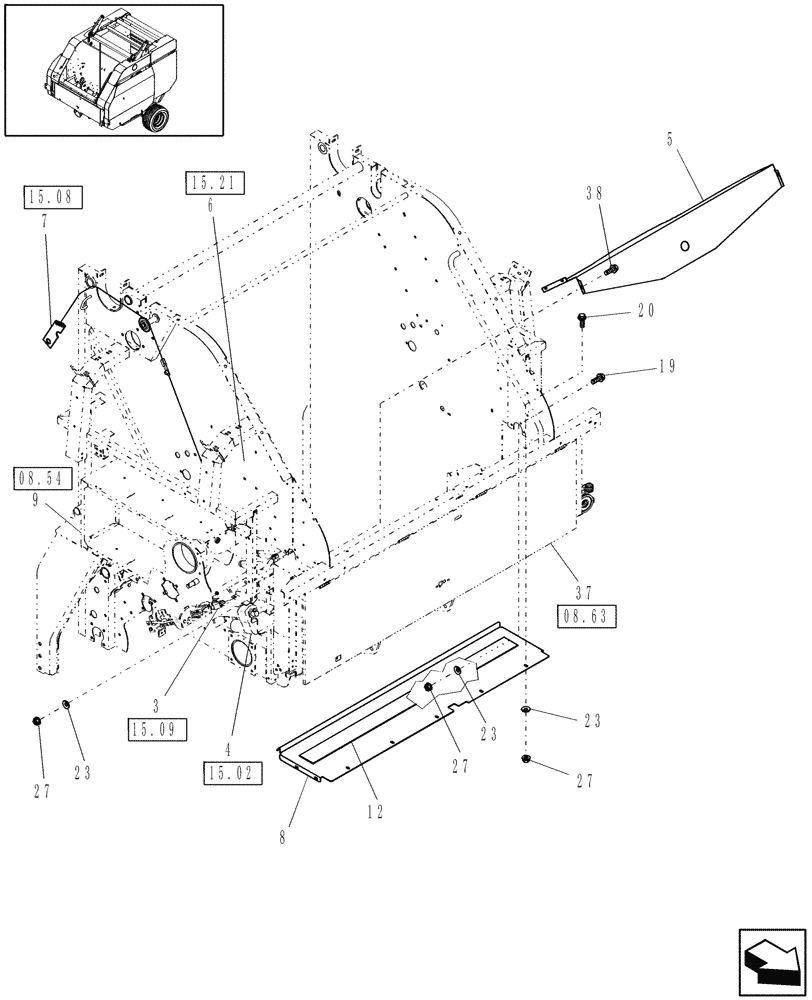

Схема запчастей Case IH RB554 - (15.05) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER
15.21
23
38
6
7
9
27
27
19
8
27
12
4
37
20
3
23
5
23
08.54
08.63
15.09
15.08
15.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

0C

ORDER COMPONENTS

Counter, Electric Twine Wrap

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

5

87048341

SHIELD

1шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

0C

ORDER COMPONENTS

Trip, Electric Twine Wrap

1шт.

8

87515841

LOAD DECK

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

12

86643976

ANTI-SKID STRIP

Safety, 4" x 56"

1шт.

19

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

5шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

13шт.

37

87638748

DOOR

Twine Wrap, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.
