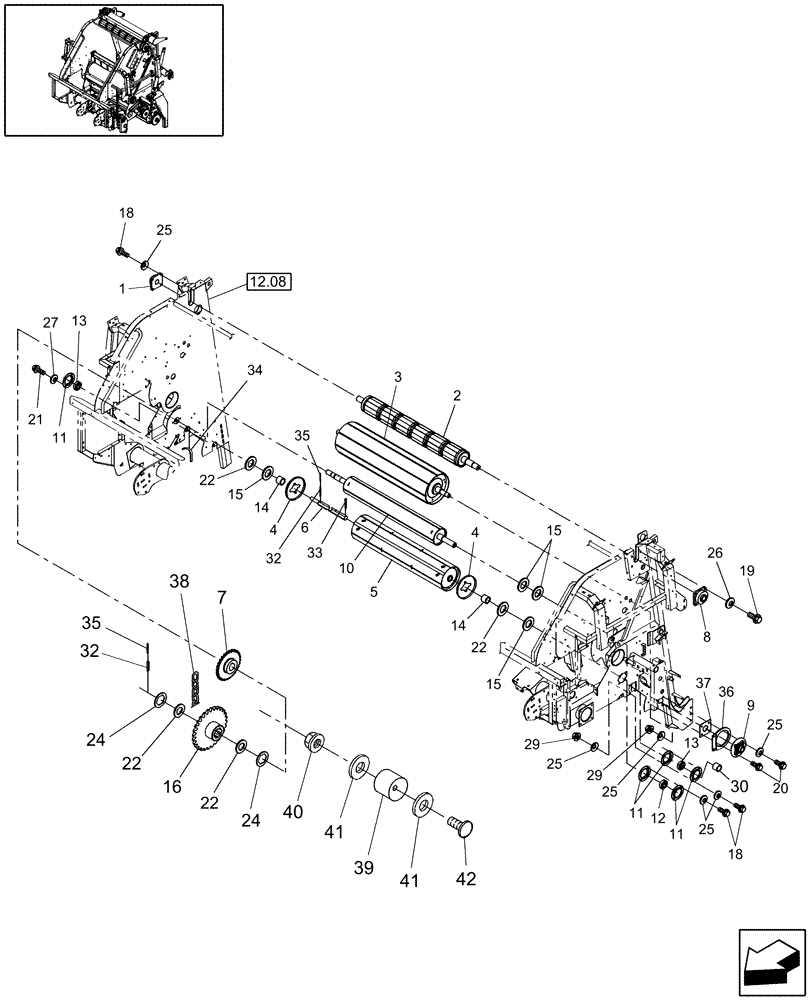

Запчасти Case IH RB554 (14.54) - MAIN FRAME & ROLLS (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1шт.

2

87027871

ROLL

Drive

1шт.

3

86600450

ROLLER

Floor, Includes: Round Rods

1шт.

4

87602845

SHIELD

2шт.

5

87396562

ROLL

Fixed

1шт.

6

87056503

SHAFT

1шт.

7

86610109

SPROCKET

2шт.

8

87660331

BEARING ASSY,50 mm ID x 69.8 mm OD x 60.3 mm

Endless Belt

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

10

87554101

ROLLER ASSY.

Starter, Includes: Round Rods

1шт.

11

86837676

FLANGED BEARING

8шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

2шт.

13

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

87056511

SPROCKET

28T, RC60

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

22шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

4шт.

24

87056525

WASHER

2шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

29

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

30

86976003

SPACER

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

34

87039466

STRIPPER

2шт.

Welding Required

1шт.

35

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

36

86602047

PIVOT PLATE

1шт.

37

86602143

WEAR PLATE

4шт.

38

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

RC606, 57 Total Links, Includes: Ref. 43 & 44

1шт.

39

86514717

IDLER WHEEL

1шт.

40

100038

NUT,M12 x 1.75, Cl 8

1шт.

41

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

42

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

43

165590

CONNECTING LINK

1шт.

Not Illustrated

1шт.

44

86595275

OFFSET LINK

1шт.

Not Illustrated

1шт.
