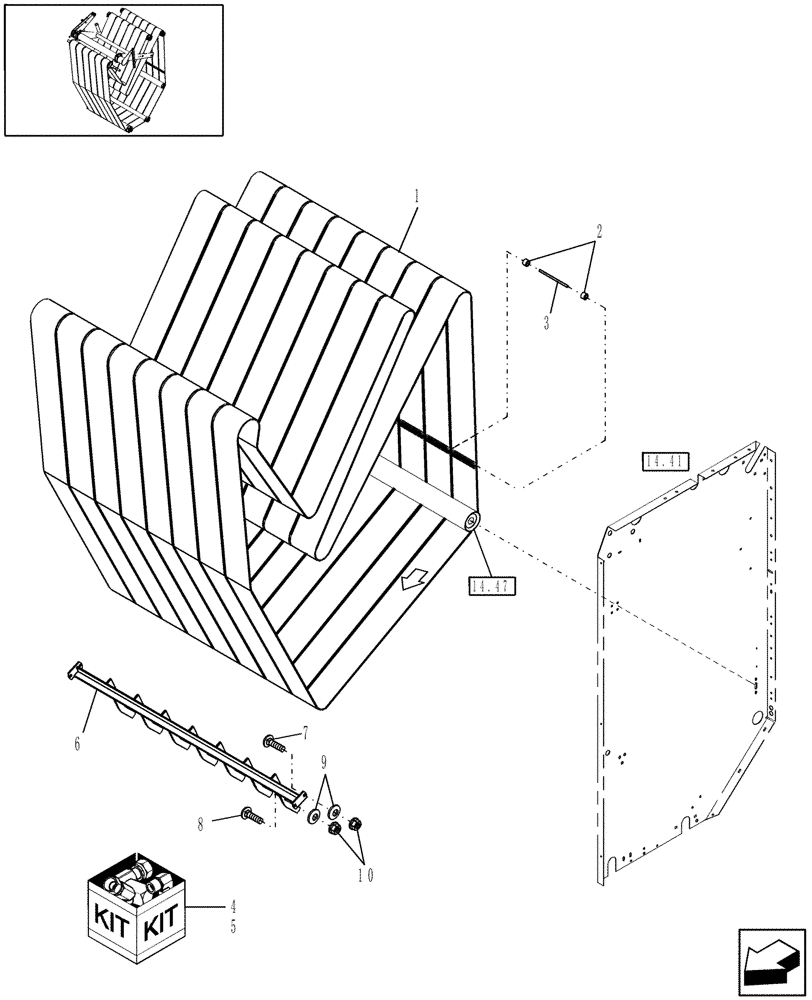

Запчасти Case IH RB554 (14.03) - LACED BELT (14) - BALE CHAMBER

1

86642412

BELT,177.80 mm W x 10671.00 mm L

Laced, Mini Rough Top Pattern

8шт.

2

9843258

TUBE

Lacing

16шт.

3

9843257

CABLE

Lacing

8шт.

4

87343637

REPAIR KIT

Lacing Cable, Heavy Duty, Includes: (5') Lacing Cable, (20) Retainers

1шт.

5

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

6

86977995

GUIDE

Belt, Front, Optional

1шт.

7

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.
