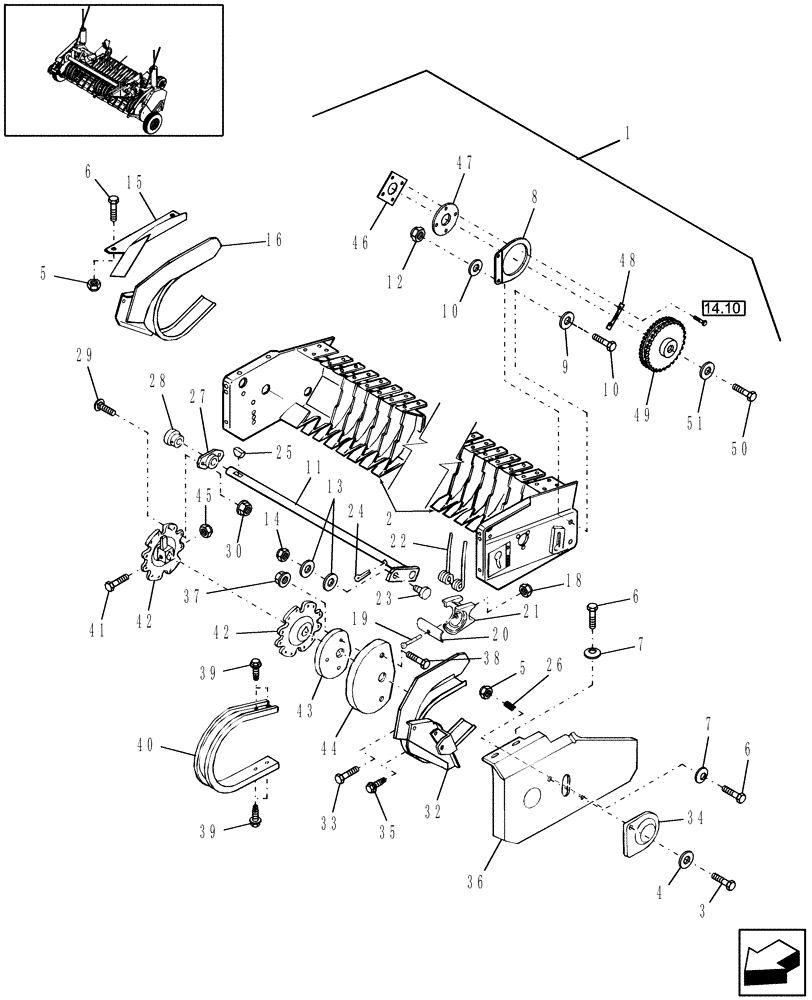

Запчасти Case IH RB554 (13.145) - STANDARD PICKUP, SHIELDS, REEL & DRIVE (13) - FEEDER

1

87037383

PICK-UP

Standard, Includes: Fig. 13.140 & 13.145

1шт.

2

86633885

PICK-UP

Frame

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

4

495-11034

WASHER,5/16", SAE

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

5

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

8

86602047

PIVOT PLATE

2шт.

9

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

10

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

11

87040501

PIPE ASSY.

6шт.

12

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

13

244379

WASHER,13.49mm ID x 19.05mm OD x 2.67mm Thk

Special, Hardened

12шт.

14

88130

NUT,1/2"-20, GC

6шт.

15

86636752

SHIELD

1шт.

16

86637153

PLATE ASSY.

Transition, RH

1шт.

18

231-4145

NUT,5/16"-18, GB

72шт.

19

130891

BOLT,Tine, 5/16" - 18 x 2"

Special, Pickup Finger

72шт.

20

134921

BRACKET

Pickup Tooth

72шт.

21

86627654

TINE BAR

Tooth

72шт.

22

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

72шт.

22

87607074

TINE

Pickup, Curved, Economy, Optional

72шт.

23

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

6шт.

24

136521

COTTER PIN,5.7mm OD x 44.45mm L

1/4" x 1-1/2"

18шт.

25

87038548

WOODRUFF KEY

3шт.

26

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

27

54695

BEARING HOUSING

18шт.

28

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

18шт.

29

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

24шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

30

231-5146

FLANGE NUT,3/8"-16

24шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

31

638025

FLANGE

12шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

32

86637155

PLATE ASSY.

Transition, LH

1шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

34

86619617

SHIELD

Cover

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

35

690341

SELF-TAP SCREW

Flg, USR, 5/16"-18 x 5/8"

2шт.

36

86618401

SHIELD

Pickup

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

37

825-51410

FLANGE NUT,M10, Flg Ser

40шт.

38

905-10025

BOLT,Hex Flg, M10 x 25mm

3шт.

39

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

104шт.

40

87041202

GUARD ASSY.

Pickup

23шт.

41

120071

BOLT,Hex, M10 x 65, 8.8

3шт.

42

86635065

DISC

Finger

3шт.

43

86636873

CAM

Inner

1шт.

44

86636761

CAM

Outer

1шт.

45

832-46410

NUT,M10 x 1.5, Cl 8

3шт.

46

86602143

WEAR PLATE

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

47

86602046

PLATE

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

48

86602446

ANGLE

Chain Guard

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

49

86618109

SPROCKET

Double

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

50

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

51

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.
