Запчасти Case IH RB554 (08.63) - SHIELDS, DOOR, TWINE (08) - SHEET METAL/DECALS

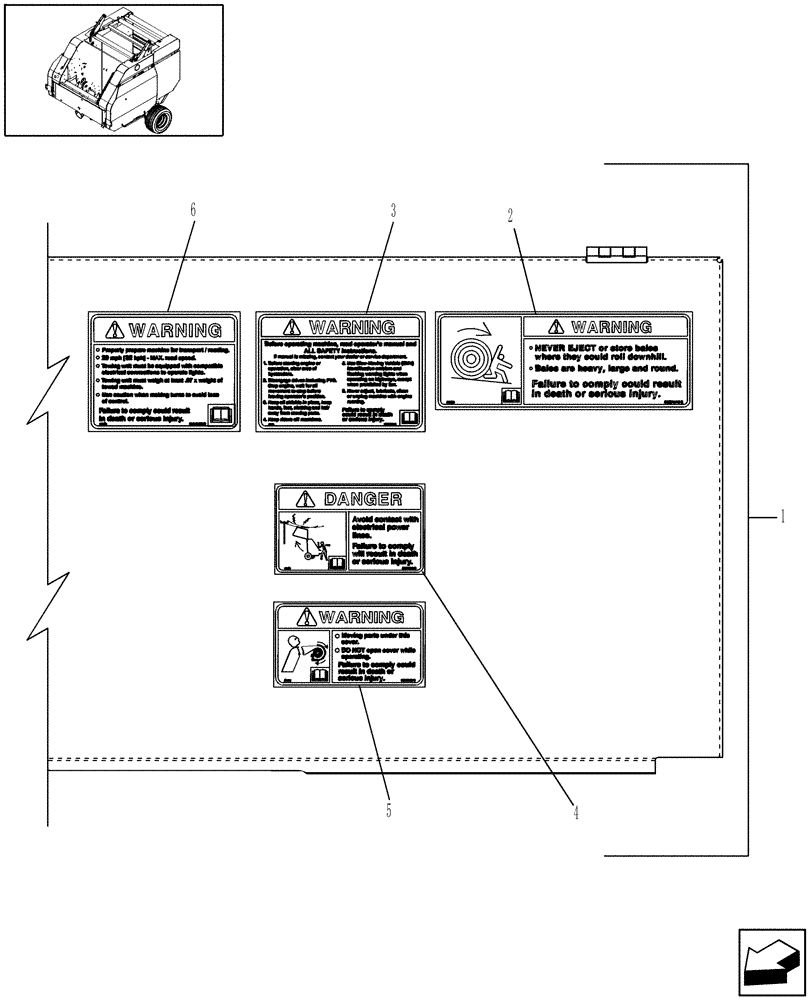

Схема запчастей Case IH RB554 - (08.63) - SHIELDS, DOOR, TWINE (08) - SHEET METAL/DECALS
2
5
1
6
3
4

Артикул

Название

Примечание

Количество

1

87638748

DOOR

Twine

1шт.

2

84337031

DANGER DECAL

English

1шт.

Not Illustrated

1шт.

NORTH AMERICA

1шт.

2

84346730

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

NORTH AMERICA

1шт.

3

86622073

WARNING DECAL

English

1шт.

4

86632699

WARNING DECAL

English

1шт.

3

86622074

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

4

86632803

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

5

87014378

WARNING DECAL

Electric Risk, English

1шт.

5

87014380

WARNING DECAL

Electric Risk, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

6

87041060

WARNING DECAL

English

1шт.

6

87042011

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

Выбрано товаров: 19
