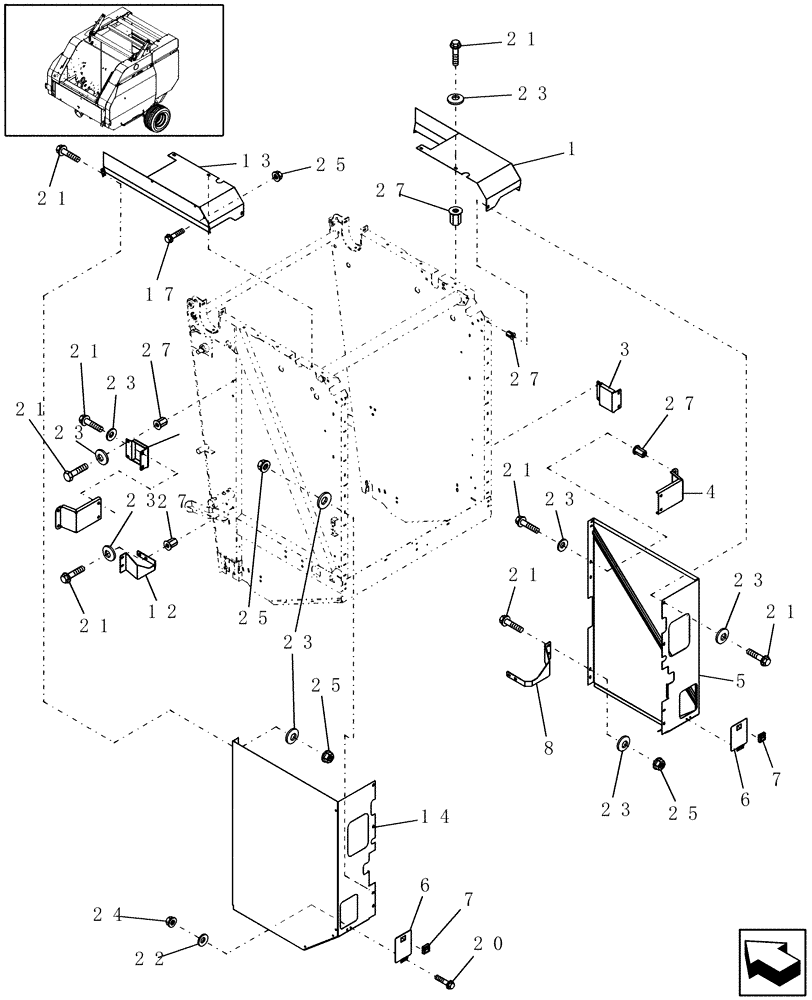

Запчасти Case IH RB554 (08.45[1]) - SHIELDS, REAR, NORTH AMERICA, PRIOR TO P.I.N. Y7N016413 (08) - SHEET METAL/DECALS

1

87040794

SHIELD

RH, Upper

1шт.

3

87022205

SUPPORT

2шт.

4

86643515

SUPPORT

2шт.

5

86705848

SHIELD

1шт.

6

86643221

DOOR ASSY.

2шт.

7

632732

LATCH

2шт.

8

86643486

SUPPORT

RH

1шт.

12

86643485

SUPPORT

LH

1шт.

13

87037391

SHIELD

LH, Upper

1шт.

14

86705850

SHIELD

LH

1шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

20

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

36шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

36шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

16шт.

27

86610200

THREADED INSERT,M8 x 1.25

M8

24шт.
