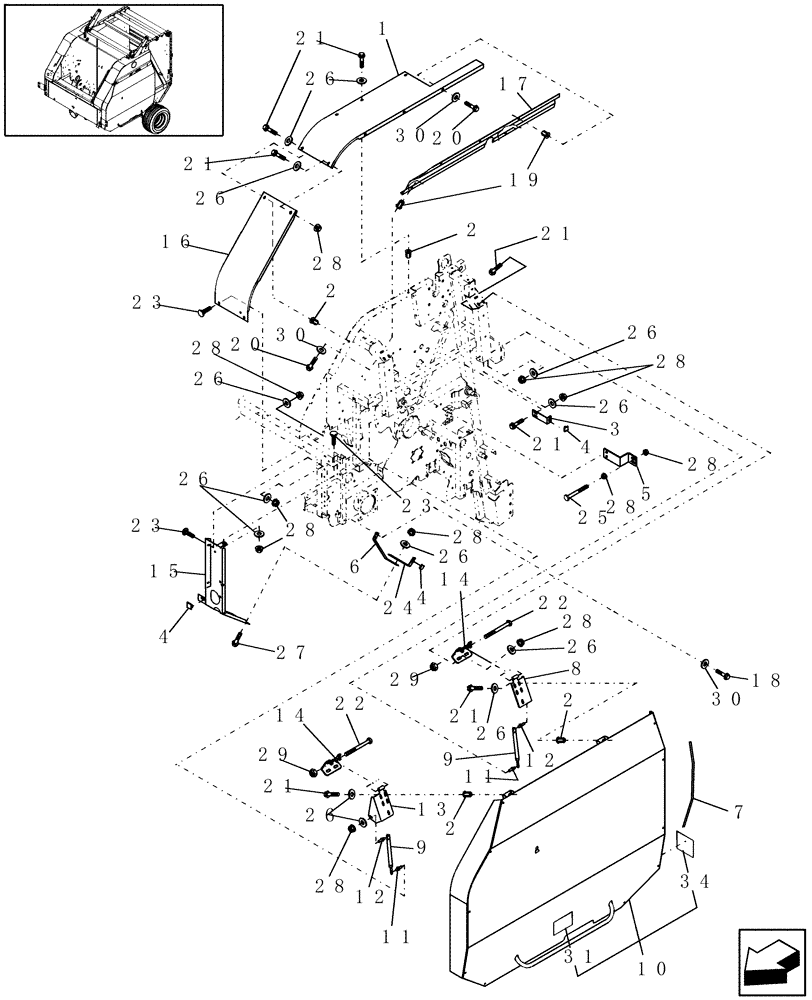

Запчасти Case IH RB554 (08.31) - SHIELDS, LH (08) - SHEET METAL/DECALS
№
Артикул
Название
Примечание
Количество
1
86620775
SHIELD
LH
1шт.
2
86610200
THREADED INSERT,M8 x 1.25
M8
14шт.
3
87037609
ANGLE
145mm Lg.
1шт.
4
9617869
BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk
Rubber, 3/16" Thk
2шт.
5
87608706
ANGLE
1шт.
6
87597253
ANGLE
1шт.
7
86516805
SOFT TRIM,31-3/4" L
Edging
1шт.
8
86837233
HINGE
1шт.
9
86628348
GAS STRUT
2шт.
10
87037616
DOOR ASSY.
LH, North America, Decals Ref. 31 & 34 are Not Included.
1шт.
10
87037616
DOOR ASSY.
LH, Europe & R.O.W., Decals Ref. 31 & 34 are Not Included.
1шт.
11
86634307
STUD
Short, Ball End
2шт.
12
86628347
STUD,M8 x 36.5mm OAL, 10mm OD Ball
Long, Ball End
2шт.
13
86837232
HINGE
1шт.
14
87037410
HINGE
Lower, Square-Shaped
2шт.
15
87601922
SHIELD
LH, North America
1шт.
15
87673600
SHIELD
LH, Europe & R.O.W.
1шт.
16
86620774
SHIELD
1шт.
17
86620786
PANEL
LH
1шт.
18
677808
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
HWH, 1/4"-20 x 5/8"
2шт.
20
844-6020
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
5шт.
21
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
19шт.
22
814-8070
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
2шт.
23
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
9шт.
24
87608704
BRACKET
1шт.
25
814-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
1шт.
28
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
24шт.
29
832-46408
NUT,M8 x 1.25, Cl 8
2шт.
30
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
6шт.
31
86631518
DANGER DECAL
English
1шт.
31
86632801
DECAL
DANGER, French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
34
86626958
WARNING DECAL
English
1шт.
34
86626961
WARNING DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
Выбрано товаров: 38
