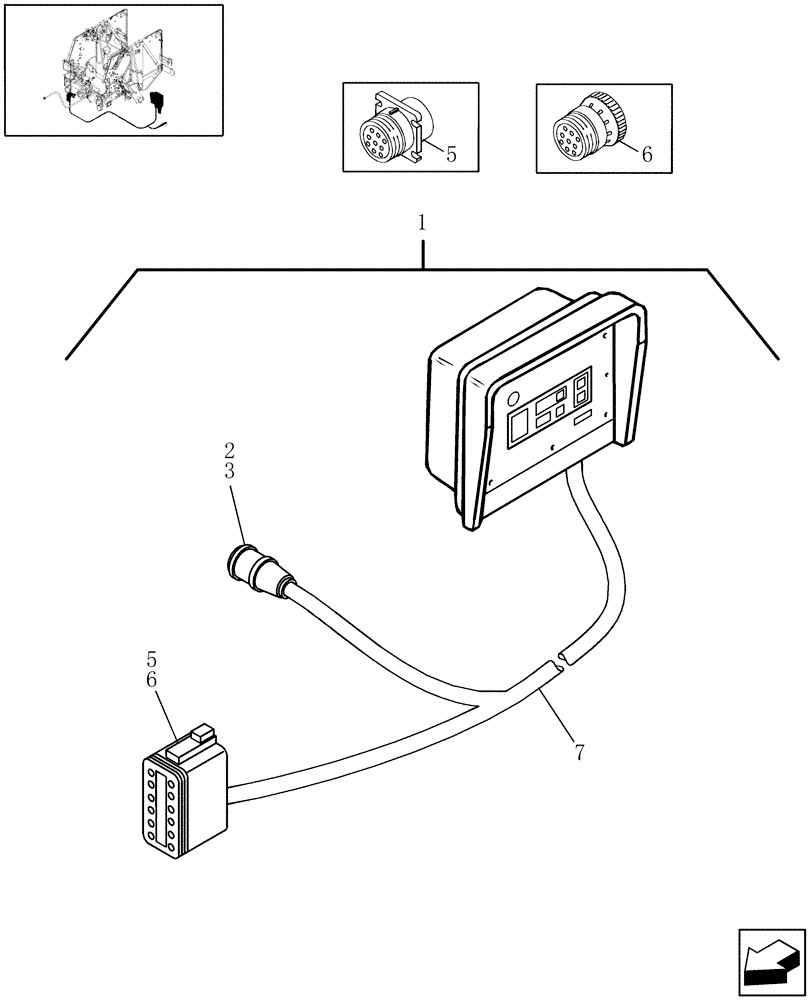

Запчасти Case IH RB554 (06.35) - ELECTRONIC CONTROL UNIT, ELECTRIC WRAP, NORTH AMERICA (06) - ELECTRICAL SYSTEMS

1

86643035

ECU

Operator Panel, Electric Twine Wrap

1шт.

Refer to Repair Manual for Service Instructions

1шт.

1

87035274R

REMAN ELECT CONTROL

ELECTRONIC

1шт.

1

87035274C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL PANEL

1шт.

86643035C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL PANEL - for N.A. Only

1шт.

2

86624245

CONNECTOR, ELEC

CONNECTOR Power

1шт.

3

86624246

CONNECTOR, ELEC

CONNECTOR Cable Clamp

1шт.

4

900401

TERMINAL

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Tractor, DEU DT06-12SA-P012

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Secondary Lock, DEU W12S-P012

1шт.

7

86622164

HARNESS

Wire

1шт.

Refer to Repair Manual for Service Instructions

1шт.

8

86521580

WIRE HARNESS

Power Adapter, Serial Range: 3-Prong-4-Prong

1шт.

Not Illustrated

1шт.
