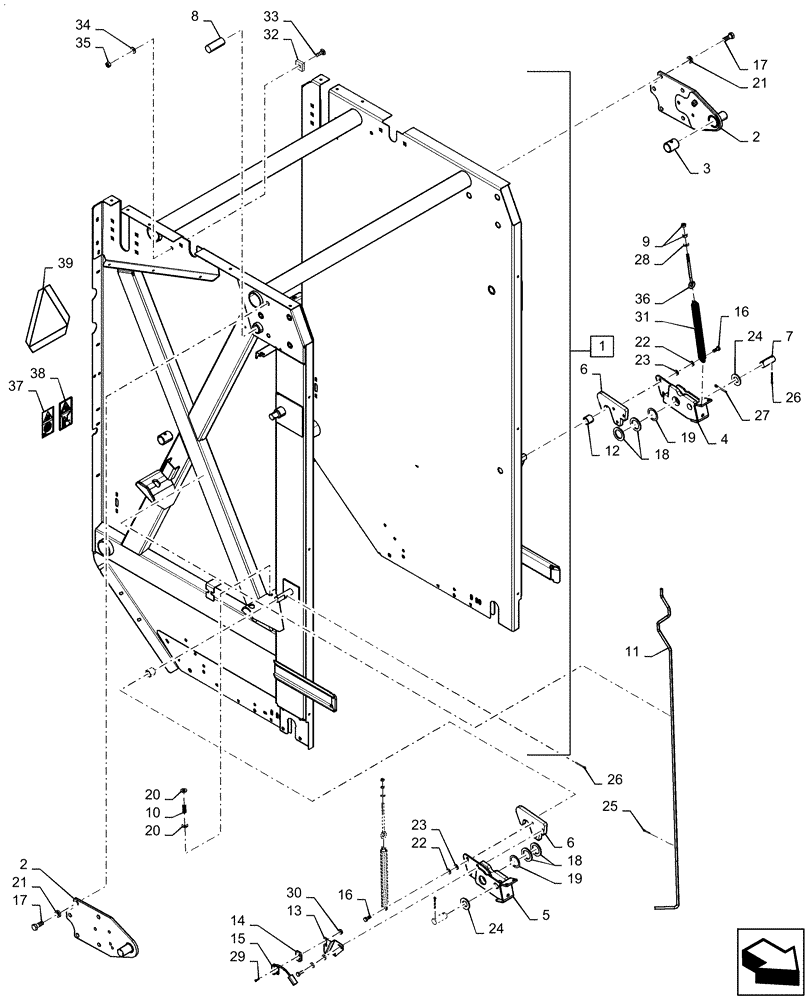

Запчасти Case IH RB465 (39.100.AV[02]) - TAILGATE, YFN188619 AND AFTER (39) - FRAMES AND BALLASTING

1

47565140

TAILGATE

Incl 37 - 39, Serial Range: -YGN193202

1шт.

1

47973712

TAILGATE

Dual Cylinders, Incl 38, Start Serial: YGN193203

1шт.

2

47798993

PLATE

2шт.

3

84480737

BUSHING,35.17mm ID x 41.35mm OD x 50mm L

M35.2 ID x 41.3 OD x 50

2шт.

4

47748158

LATCH

LH

1шт.

5

47748150

LATCH

RH

1шт.

6

84217008

LATCH

Hook

2шт.

7

166065

PIN,25.4mm OD x 66.5mm L

M25.4 OD x 66.5 Long

2шт.

8

9845448

PIN,31.7mm OD x 83.7mm L

M25.4 OD x 83.7 Long

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

34019

SPRING,Compression, 9/16" OD x 2-5/16" L

7/16" ID x 2-5/16" Long

1шт.

11

47461256

ROD

1шт.

12

87665527

SPACER,25.75mm ID x 31.75mm OD x 28mm L

25.7 ID x 31.7 OD x 28 Long

2шт.

13

87709056

CHANNEL

1шт.

14

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

15

86594422

SENSOR

Tailgate Latch

1шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

17

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

10шт.

18

86603125

WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk

4шт.

19

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

2шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

21

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

10шт.

22

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

6шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

24

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

25

80756

COTTER PIN,1/8" x 3/4"

1шт.

26

87399

COTTER PIN,1/2 x 3 Bolt

6шт.

27

88182

COTTER PIN,1/4" OD x 2" L

2шт.

28

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

29

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

30

86900323

NUT,#10 - 24

10-24 KWH

2шт.

31

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

M28.5 OD x 240 Long

2шт.

32

86636768

PLATE

2шт.

33

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

34

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

35

9706685

NUT,M12 x 1.75, Cl 8

2шт.

36

27953

EYEBOLT

5/16"-18 x 6-1/4"

2шт.

37

47361241

WARNING DECAL

Crushing Hazard

1шт.

38

86516139

CAUTION DECAL

Pinching Hazard

3шт.

39

86547711

DECAL,SMV

1шт.
