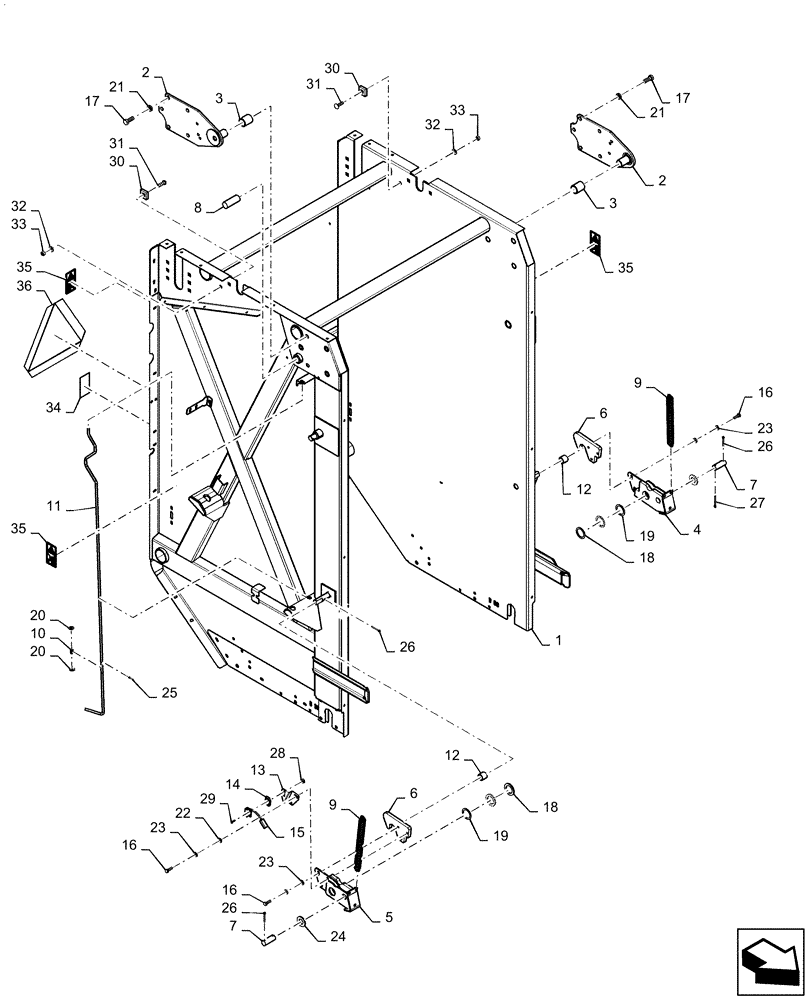

Запчасти Case IH RB465 (39.100.AV[02]) - TAILGATE, YFN188618 AND PRIOR (39) - FRAMES AND BALLASTING

1

47565140

TAILGATE

Incl 34-36

1шт.

2

87045740

PLATE

2шт.

3

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

4

84216964

LATCH

LH

1шт.

5

84216997

LATCH

RH

1шт.

6

84217007

HOOK

2шт.

7

166065

PIN,25.4mm OD x 66.5mm L

2шт.

8

9845448

PIN,31.7mm OD x 83.7mm L

1шт.

9

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

2шт.

10

34019

SPRING,Compression, 9/16" OD x 2-5/16" L

1шт.

11

47461256

ROD

1шт.

12

87665527

SPACER,25.75mm ID x 31.75mm OD x 28mm L

2шт.

13

87709056

CHANNEL

1шт.

14

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

15

86594422

SENSOR

1шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

17

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

10шт.

18

86603125

WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk

4шт.

19

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

2шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

21

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

10шт.

22

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

6шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

24

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

25

80756

COTTER PIN,1/8" x 3/4"

1шт.

26

87399

COTTER PIN,1/2 x 3 Bolt

6шт.

27

88182

COTTER PIN,1/4" OD x 2" L

2шт.

28

86900323

NUT,#10 - 24

2шт.

29

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

30

9622795

PLATE

2шт.

31

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

32

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

33

9706685

NUT,M12 x 1.75, Cl 8

2шт.

34

47361241

WARNING DECAL

1шт.

35

86516139

CAUTION DECAL

3шт.

36

86547711

DECAL,SMV

1шт.
