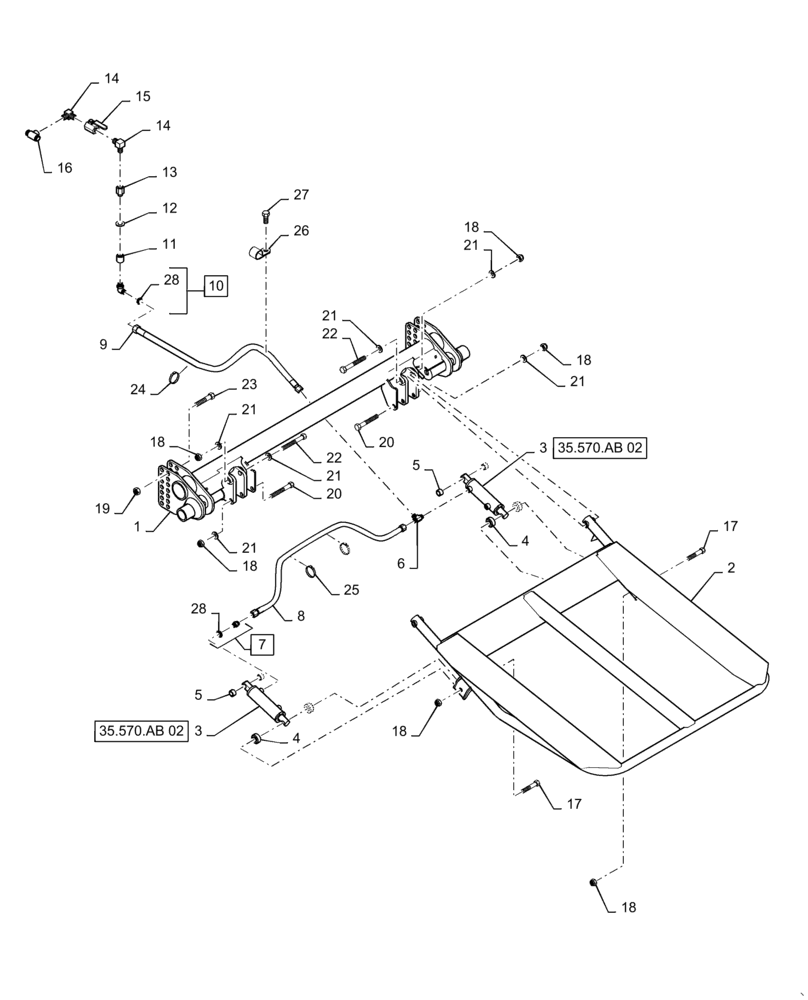

Запчасти Case IH RB465 (35.570.AB[01]) - VAR - 726810 - HYDRAULIC LINE, BALE EJECTOR (35) - HYDRAULIC SYSTEMS

1

84535648

AXLE

1шт.

2

47485559

EJECTOR

Bale, Serial Range: -YFN188618

1шт.

2

47681862

EJECTOR

Bale, Start Serial: YFN188619

1шт.

3

87731915

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 107.95mm Stroke

Bale Ejector

2шт.

4

87601384

SPACER,20mm ID x 47.6mm OD x 22.2mm Thk

4шт.

5

87022762

BEARING,0.785" ID x 1.13" OD x 5"

4шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 28

1шт.

8

47406397

HOSE

Pressure, 945 mm Long

1шт.

9

87611136

FLEXIBLE HOSE

5482 mm Long

1шт.

10

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 28

1шт.

11

86635143

COUPLING,3/4" - 16, 1-9/64" L

1шт.

12

86630002

ORIFICE,15.88mm OD x 5.08mm Thk

1шт.

13

86628562

ADAPTER,1/2" NPTF x 3/4" - 16

1шт.

14

217-1226

ELBOW,90 Degree, 1/2"-14 Male

2шт.

15

87642600

HYDRAULIC VALVE

1шт.

16

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

1шт.

17

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

18

9626598

NUT,3/4"-10, GB

6шт.

19

100020

NUT,M16 x 2.0, Cl 8

6шт.

20

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

21

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

6шт.

22

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

23

120248

BOLT,Hex, M16 x 100, 8.8, Full Thd

6шт.

24

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

25

87034173

CABLE TIE,774.7mm L

3шт.

26

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

3шт.

27

381014

SCREW,Flng, M8 x 16mm

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
