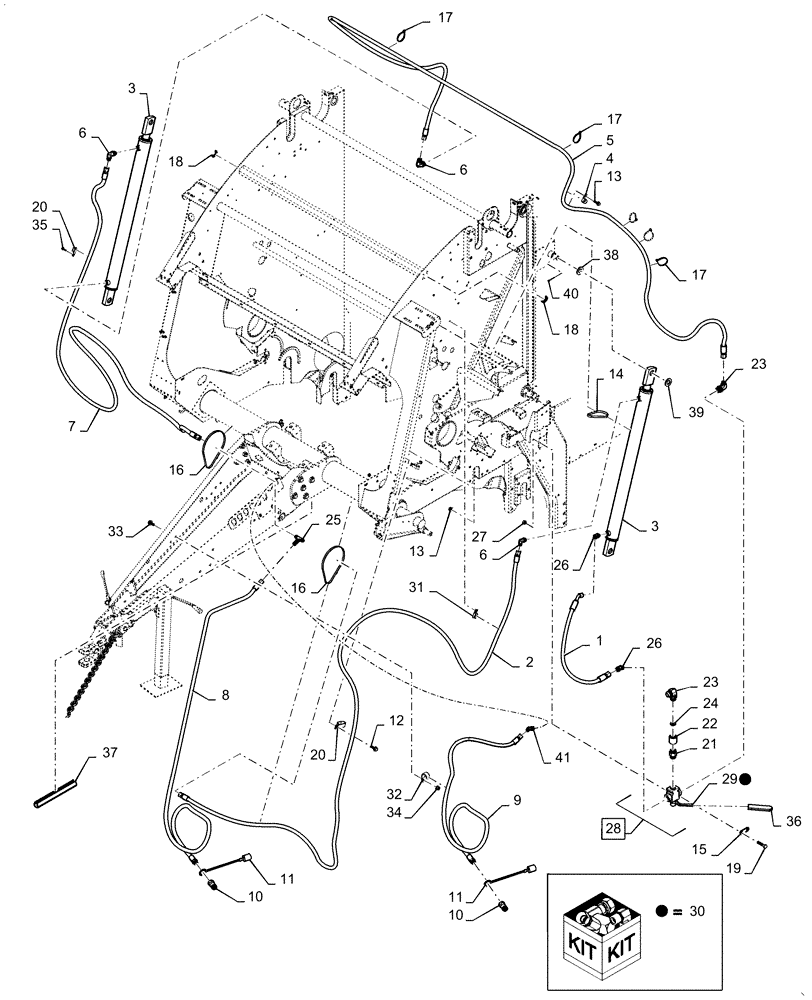

Запчасти Case IH RB465 (35.550.AC[02]) - TAILGATE, HYDRAULIC LIFT, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS

1

84419273

HYDRAULIC HOSE

LH

1шт.

2

47456324

HOSE

152" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18

1шт.

3

87019623

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 685.8mm Stroke

Tailgate Lift

2шт.

4

239859

CLAMP

2шт.

5

47603468

HYDRAULIC HOSE

195" Long, SAE-6, Female 37° JIC Fitting, 9/16"-18 & SAE-8, Female 37° JIC Fittings, 3/4"-16

1шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

5шт.

7

47456819

HOSE

146" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18

1шт.

8

84419297

HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17

120" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18 & 1/2"-14 NPTF

1шт.

9

47665570

HYDRAULIC HOSE

284" Long, SAE-6, Female 37° JIC Fittings, 9/16"-18 & 1/2"-14 NPTF

1шт.

10

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

11

86621124

DUST CAP

Black

2шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

14

529070

CABLE TIE,368.3mm L

2шт.

15

84416929

PLATE

1шт.

16

87034173

CABLE TIE,774.7mm L

4шт.

17

86566989

CABLE TIE,208mm L

17шт.

18

NH291525

EDGE

31"

1шт.

19

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

20

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

21

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

1шт.

22

592188

COUPLING

1шт.

23

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

24

86630002

ORIFICE,15.88mm OD x 5.08mm Thk

1шт.

25

86513104

TEE,9/16"-18, 37 Degree, Blkhd

1шт.

26

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

27

353308

NUT,M6 x 1.0, Cl 8

2шт.

28

84606149

VALVE WITH LEVER

Incl 29, 30

1шт.

29

47382486

VALVE LEVER

1шт.

30

47382510

SEAL KIT

LH

1шт.

31

620019

CLAMP

1шт.

32

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

33

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

3шт.

34

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

35

381014

SCREW,Flng, M8 x 16mm

1шт.

36

47576842

HANDLE GRIP

1шт.

37

87490545

PROTECTION STRIP

1шт.

Cut to Length

1шт.

38

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

39

26405

PIN,1" OD x 2-3/4" L

2шт.

40

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

41

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.
