Запчасти Case IH RB465 (35.550.AB[02]) - TAILGATE, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

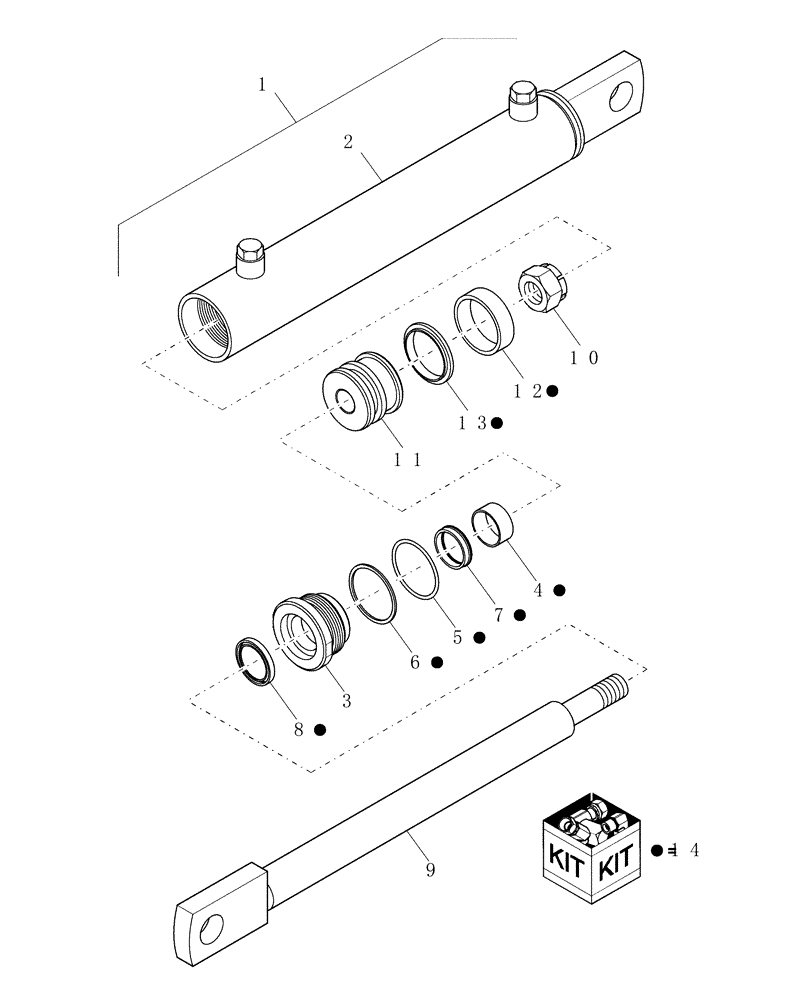

Схема запчастей Case IH RB465 - (35.550.AB[02]) - TAILGATE, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
14
13
10
8
9
12
1
7
2
3
5
6
11
4

Артикул

Название

Примечание

Количество

1

87019623

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 685.8mm Stroke

Tailgate Lift

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

87025449

HEAD

Cylinder

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

Wear, 1.250" ID x .50" Thk

1шт.

5

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

6

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

1.772" ID x .043" Thk

1шт.

7

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Double-Lip, 1.50" OD x 1.25" ID x .250" Tk.

1шт.

8

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

9

87025447

PISTON ROD

1шт.

10

280724

LOCK NUT,3/4" - 16

1шт.

11

87025448

PISTON

1шт.

12

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

13

86553483

SEAL

Piston, 3 Piece

1шт.

14

87025443

SEAL KIT

1шт.

Выбрано товаров: 14
