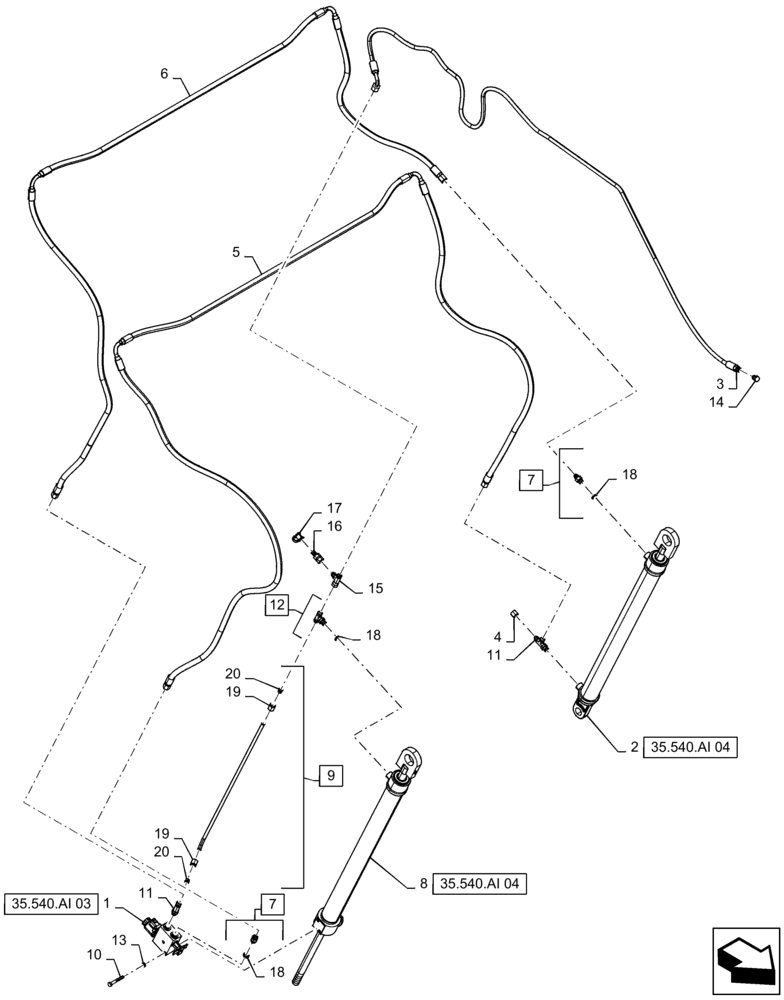

Запчасти Case IH RB465 (35.540.AI[04]) - VAR - 726815 - BALE TENSION HYDRAULICS, DUAL CYLINDER ASSEMBLY, YFN188618 AND PRIOR (35) - HYDRAULIC SYSTEMS

1

47471577

HYDRAULIC MANIFOLD

Bale Tension

1шт.

2

47624452

HYDRAULIC CYLINDER

LH

1шт.

3

84563528

HYDRAULIC HOSE,6.3mm ID x 2794mm L, SAE 100R17

2974 mm

1шт.

4

574342

CAP,9/16" - 18 JIC

1шт.

5

84563527

HYDRAULIC HOSE

Cylinder Base End

1шт.

6

84563526

HYDRAULIC HOSE

Cylinder Rod End

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 18

2шт.

8

84549525

HYDRAULIC CYLINDER

RH

1шт.

9

84552131

HYD TUBE

RH Bale Density,661 mm, Incl 19, 20

1шт.

10

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

11

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

12

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 18

1шт.

13

80681

LOCK WASHER,5/16"

2шт.

14

86513049

PLUG,9/16" - 18 JIC

1шт.

15

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

16

101792A1

COUPLING

Diagnostic

1шт.

17

86502604

DUST CAP

Black

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

136658

TUBE NUT,0.72" Length

2шт.

20

235670

SLEEVE,37 Degree, 3/8" Tube

2шт.
