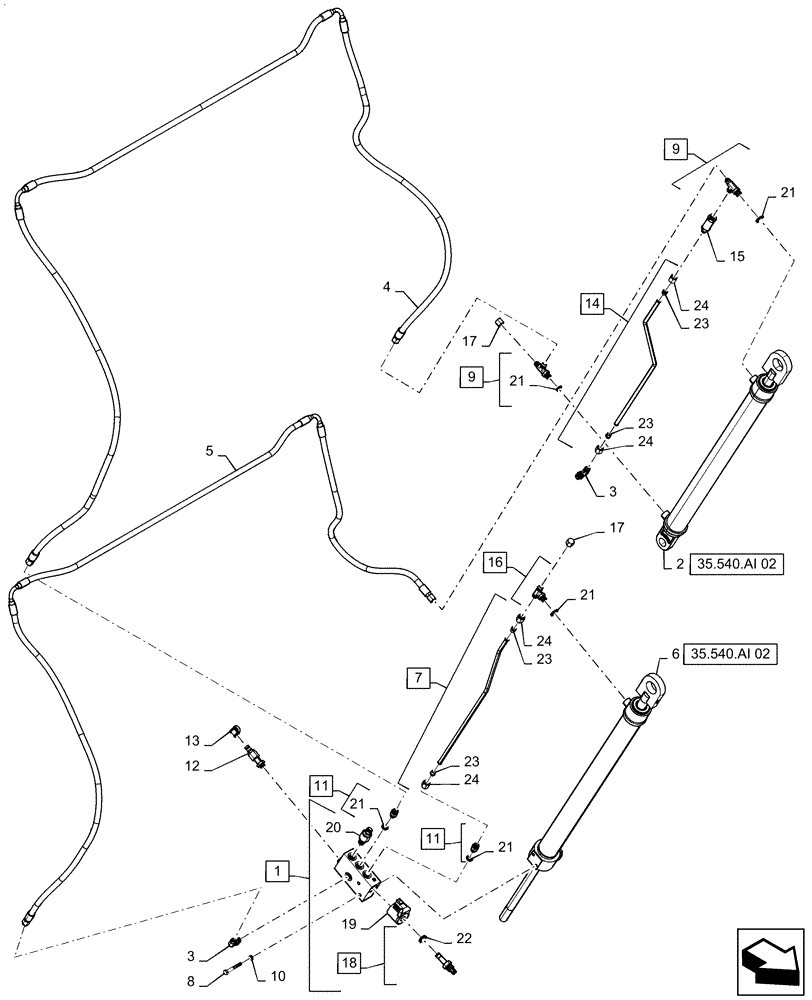

Запчасти Case IH RB465 (35.540.AI[01]) - VAR - 726815 - BALE TENSION HYDRAULICS, DUAL CYLINDER, IN CAB CONTROL, YFN188619 AND AFTER (35) - HYDRAULIC SYSTEMS

1

47765085

HYDRAULIC VALVE

Poppit Relief, Incl 18 - 20

1шт.

2

47794184

HYDRAULIC CYLINDER

LH, Serial Range: -737322005

1шт.

2

47860098

HYDRAULIC CYLINDER

LH, Start Serial: 737324001

1шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 21

2шт.

4

84563527

HYDRAULIC HOSE

Base End

1шт.

5

84563526

HYDRAULIC HOSE

Rod End

1шт.

6

84549526

HYDRAULIC CYLINDER

RH, Serial Range: -737322005

1шт.

6

47860094

HYDRAULIC CYLINDER

RH, Start Serial: 737324001

1шт.

7

47765917

TUBE

RH, Incl 23, 24, Serial Range: -737322005

1шт.

7

PL

PROCURE LOCALLY

Hyd. Tube, RH, Incl 23, 24, Start Serial: 737324001

1шт.

8

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

9

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

2шт.

10

80681

LOCK WASHER,5/16"

2шт.

11

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

2шт.

12

86013710

FITTING

Quick Connect Diagnostic

1шт.

13

86502604

DUST CAP

1шт.

14

47765920

TUBE

LH, Incl 23, 24, Serial Range: -737322005

1шт.

14

PL

PROCURE LOCALLY

Hyd. Tube, LH, Incl 23, 24, Start Serial: 737324001

1шт.

15

266631

HYDRAULIC VALVE

Check, 9/16-18 37° Flare JIC

1шт.

16

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

1шт.

17

574342

CAP,9/16" - 18 JIC

2шт.

18

47775189

HYDRAULIC VALVE

Poppit Relief, Incl 22

1шт.

19

84227091

COIL

1шт.

20

86523197

SENSOR

Incl 22

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

22

84320139

O-RING,2.2mm Thk x 11.3mm ID

1шт.

23

235670

SLEEVE,37 Degree, 3/8" Tube

2шт.

24

136658

TUBE NUT,0.72" Length

2шт.
