Запчасти Case IH RB465 (31.220.AL[02]) - VAR - 726872 - GEARBOX AND DRIVE, STANDARD, 1000 RPM, YFN188618 AND PRIOR (31) - IMPLEMENT POWER TAKE OFF

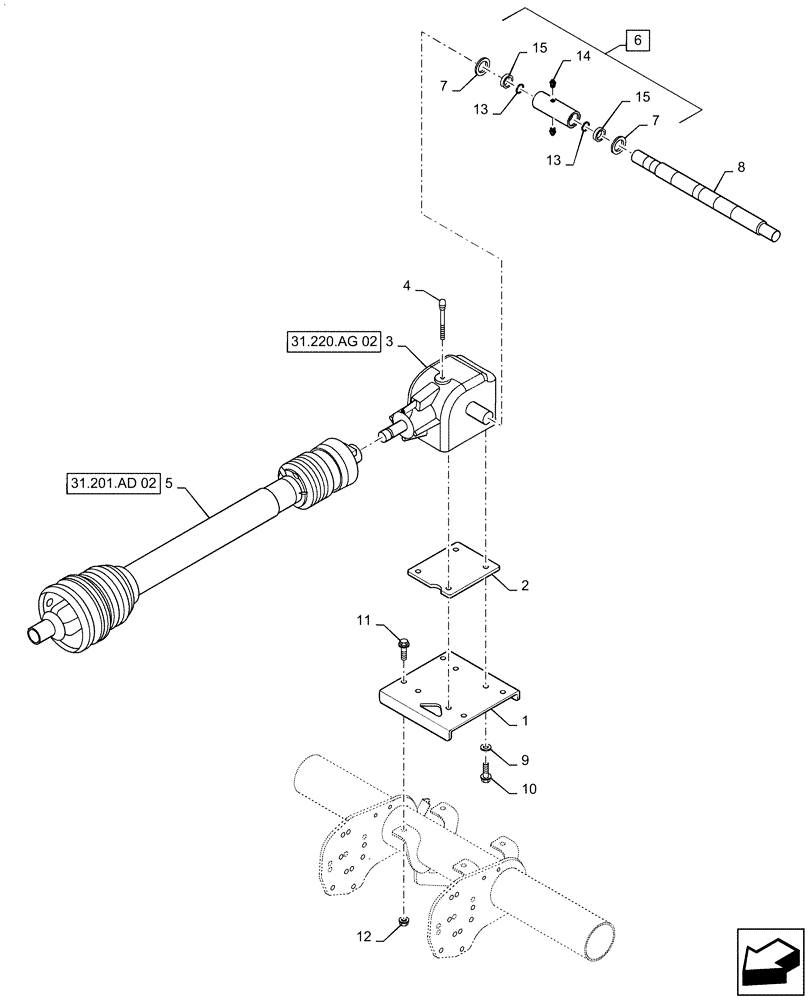

Схема запчастей Case IH RB465 - (31.220.AL[02]) - VAR - 726872 - GEARBOX AND DRIVE, STANDARD, 1000 RPM, YFN188618 AND PRIOR (31) - IMPLEMENT POWER TAKE OFF
9
15
4
11
1
12
14
8
31.220.ag 02
13
10
7
7
3
6
31.201.ad 02
13
5
15
2

Артикул

Название

Примечание

Количество

1

84526344

MOUNT

1000 RPM

1шт.

2

84526345

MOUNTING PLATE

1000 nM, Slip Clutch

1шт.

3

87344585

GEARBOX

1000 RPM, Standard Duty

1шт.

3

87344585R

REMAN-PTO GEARBOX A.

1000 RPM, Standard Duty

1шт.

3

87344585C

CORE-PTO GEARBOX A.

Return Number

1шт.

4

86626271

DIPSTICK

1шт.

5

47372356

PTO

COC, 1100 N-M

1шт.

6

86634418

COUPLING

Incl 7, 13 - 15

1шт.

7

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

2шт.

8

87664061

DRIVE SHAFT

1шт.

9

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

4шт.

10

9804272

BOLT,Hex, M16 x 50mm, Cl 8.8, Full Thd

4шт.

11

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

4шт.

12

9804280

FLANGE NUT,Hex, M16, Cl 8

4шт.

13

300643

SNAP RING,M38, Int

2шт.

14

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

15

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

2шт.

Выбрано товаров: 17
