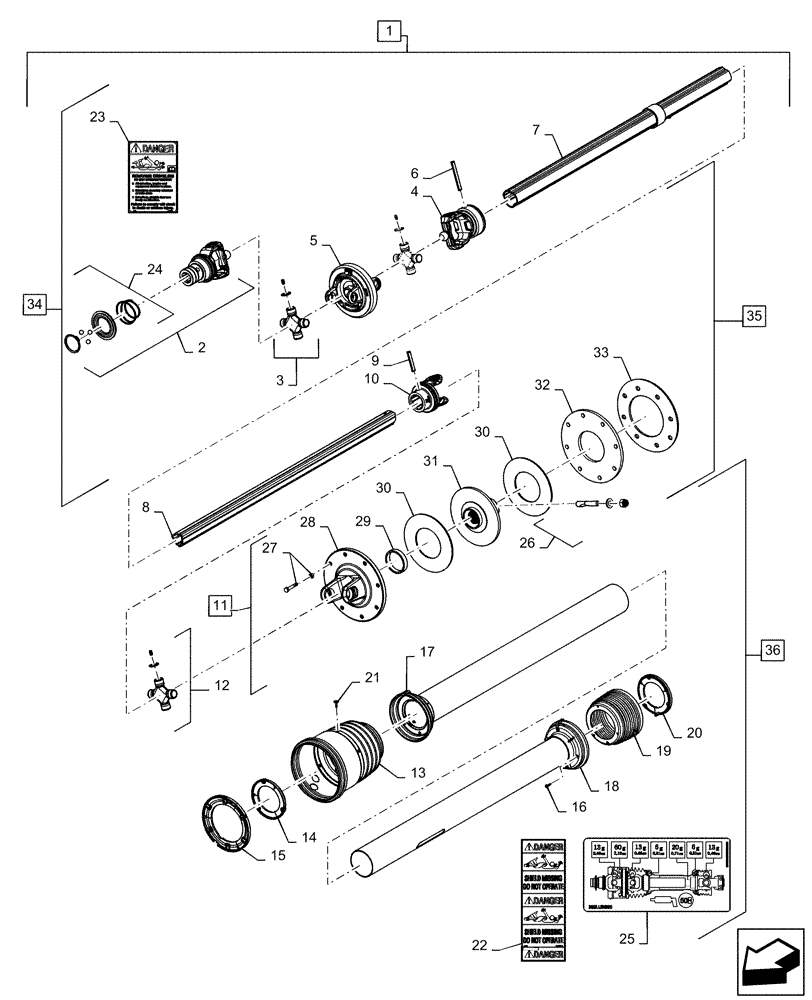

Запчасти Case IH RB465 (31.201.AD[05]) - VAR - 726527 - PTO ASSY, SLIP CLUTCH, 540 RPM, 1700 NM (31) - IMPLEMENT POWER TAKE OFF

1

84253264

PTO

Slip Clutch, 540 PM, 1700 Nm, Incl 2 - 34

1шт.

2

87517822

YOKE

Incl 24

1шт.

3

87517823

BEARING ASSY

S6 Cross, Incl 37 - 38

2шт.

4

87517824

YOKE

1шт.

5

87517825

YOKE

Central SFT CV S6

1шт.

6

87517826

ROLL PIN,10.5mm OD x 95mm L

10.5 mm x 95 mm

1шт.

7

84540279

DRIVE SHAFT

Outer

1шт.

8

87484368

TUBE,1050 mm L

Inner

1шт.

9

84036368

ROLL PIN

1шт.

10

87517829

YOKE

Rear

1шт.

11

84540723

SLIP CLUTCH

Incl 26 - 33

1шт.

12

87018244

CROSS

Incl 37 - 38

1шт.

13

84540281

CONE

1шт.

14

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

1шт.

15

87517832

BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm

1шт.

16

87587200

SELF-TAP SCREW

4.8 x 22

6шт.

17

84540283

GUARD

PTO, Front

1шт.

18

84540284

GUARD

PTO, Rear

1шт.

19

47517439

CONE

Shield

1шт.

20

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

21

87716643

SELF-TAP SCREW

4.8 x 22, Flange Head

6шт.

22

849471

DANGER DECAL

PTO

1шт.

23

849472

DANGER DECAL

PTO

1шт.

24

47654384

COLLAR

Kit

1шт.

25

47598521

IMPORTANT DECAL

Lubrication

1шт.

26

47362902

PIN

Kit

1шт.

27

87012735

KIT

Bolt

8шт.

28

86979201

YOKE

Flange

1шт.

29

47654389

BUSHING,56mm ID x 64mm OD x 12.5mm Thk

56 mm ID x 64 mm OD

1шт.

30

86517364

CLUTCH PLATE,85mm ID x 162mm OD x 3.2mm Thk

2шт.

31

86625864

HUB

1шт.

32

87517773

THRUST PLATE

1шт.

33

87517766

BELLEVILLE SPRING

1шт.

34

84540299

PTO

Half, Incl 2 - 7, 24 - 33

1шт.

35

84540728

PTO

Half, Incl 8 - 11, 26 - 33

1шт.

36

84540301

GUARD

Incl 13 - 22, 25

1шт.

37

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

3шт.

38

301644

CIRCLIP,M30, Int

12шт.
