Запчасти Case IH RB465 (27.500.AO[03]) - VAR - 8099808 - WHEEL HUB, USED WITH 21.5 X W18C WHEEL (27) - REAR AXLE SYSTEM

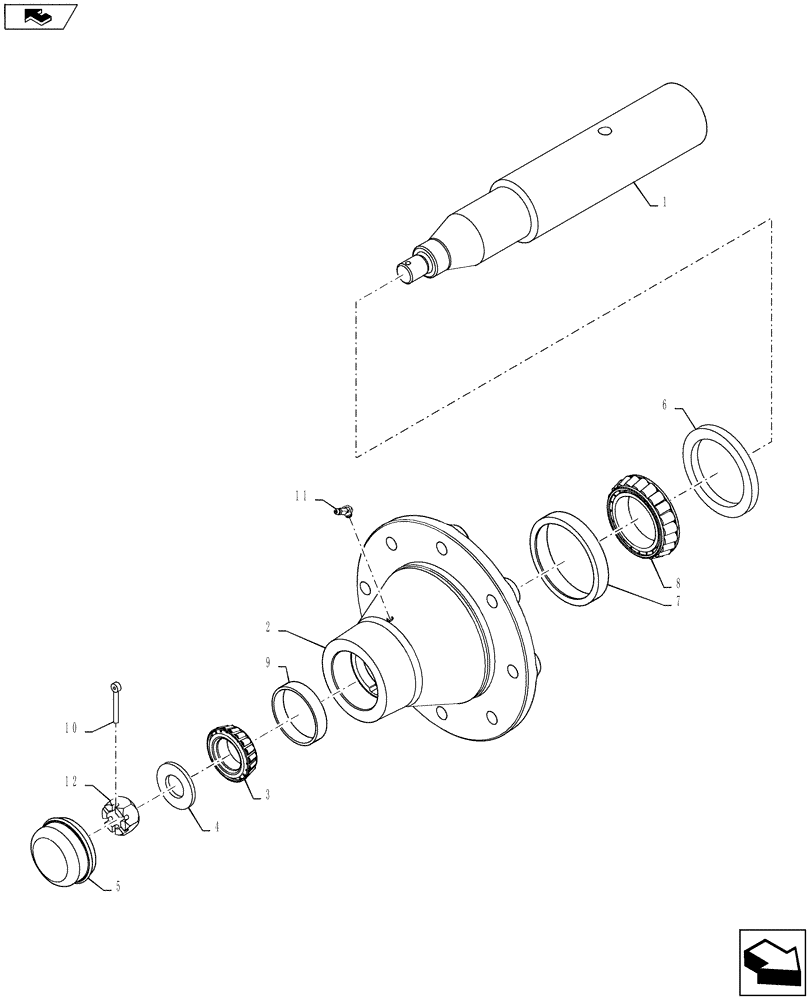

Схема запчастей Case IH RB465 - (27.500.AO[03]) - VAR - 8099808 - WHEEL HUB, USED WITH 21.5 X W18C WHEEL (27) - REAR AXLE SYSTEM
12
11
6
home
5
2
3
10
4
7
8
9
1

Артикул

Название

Примечание

Количество

1

87485977

SPINDLE

Wheel

1шт.

2

87491884

HUB

Wheel

1шт.

3

86516468

ROLLER BEARING

Tapered Roller, 1.375" ID

1шт.

4

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2.00" OD x 1.00" ID

1шт.

5

714610

FLANGE COVER CAP

Press-in

1шт.

6

131526

OIL SEAL

3.883" OD x 2.750" ID

1шт.

7

49029

BEARING CUP

3.8125" OD x .625 Thk.

1шт.

8

166258

BEARING CONE,2.25" ID x 0.864"

1шт.

9

86516467

BEARING CUP,65.08mm OD x 13.97mm W

2.562" OD x .550" Thk.

1шт.

10

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

12

280172

SLOTTED NUT,7/8"-14

1шт.

Выбрано товаров: 12
