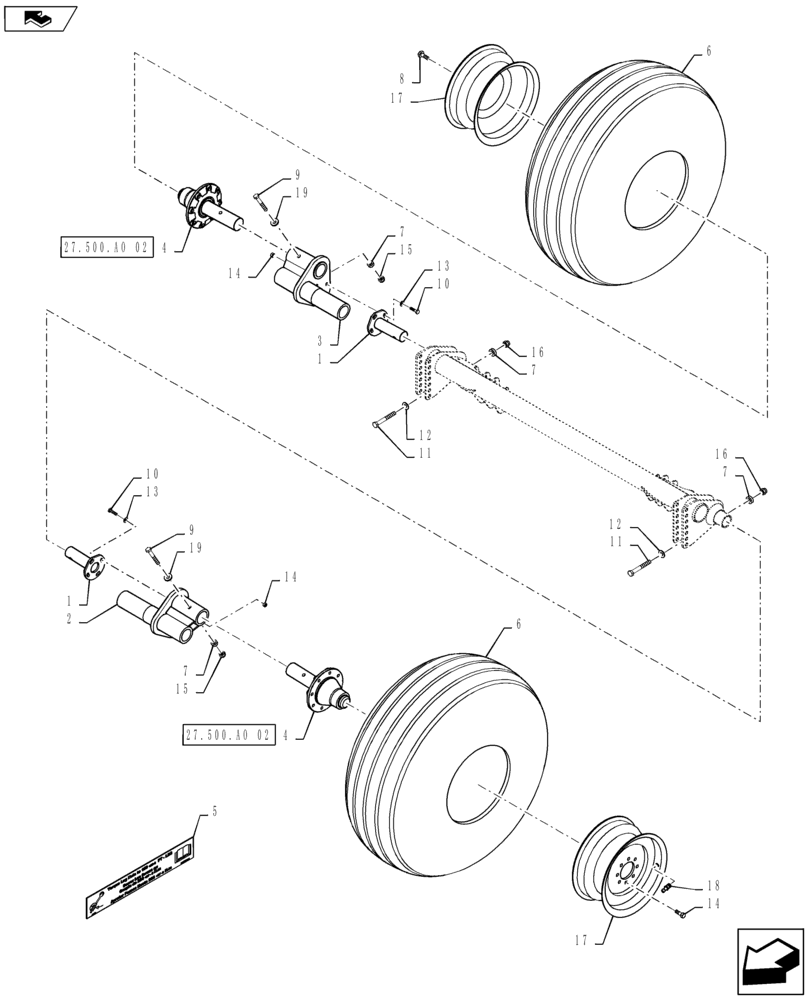

Запчасти Case IH RB465 (27.500.AL[04]) - VAR - 809980 - WHEELS & TIRES, 21.5L X 16.1 - 10 PLY (27) - REAR AXLE SYSTEM

1

87471265

SPINDLE

Wheel

2шт.

2

87471253

MOUNT

LH

1шт.

3

87482371

MOUNT

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Wheel Hub

2шт.

5

84176044

DECAL

Torque

2шт.

Refer to Decal Figures for Correct Location.

1шт.

6

PL

PROCURE LOCALLY

Tire , 21.5L x 16.1 - 10 Ply Flotation

2шт.

7

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

M31 ID x 16 OD

4шт.

8

704588

WHEEL BOLT,5/8" - 18 x 1-5/8"

5/8"-18 x 1-5/8"

16шт.

9

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

10

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

11

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

12

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

M17 ID x 41 OD

4шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

14

337475

NUT,M12, Cl 10

8шт.

15

9636698

NUT,1/2"-13, GB

2шт.

16

86000441

NUT,M16 x 2.0, Cl 8

2шт.

17

84168268

WHEEL

16.1 x W18C

2шт.

18

196033

VALVE STEM

Air

2шт.

19

87025710

WASHER

HT-PL

2шт.
