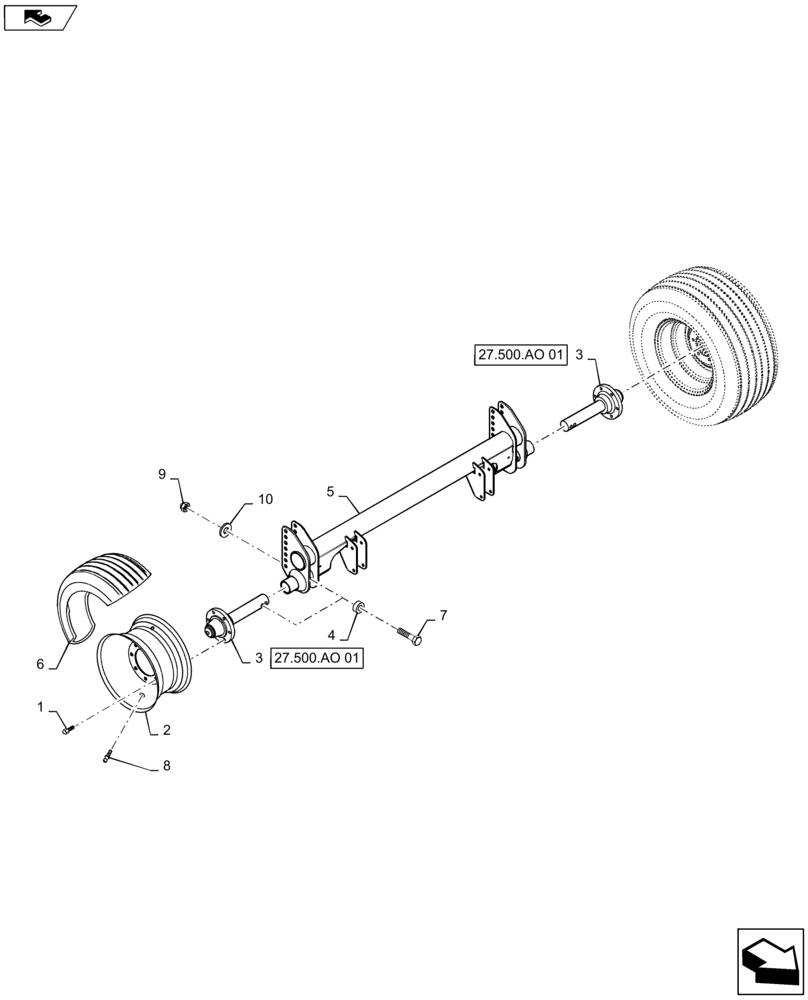

Запчасти Case IH RB465 (27.500.AL[03]) - VAR - 807260 - WHEELS & TIRES, 31 X 13.50-15, 8 PLY RIB (27) - REAR AXLE SYSTEM

1

198056

WHEEL BOLT,1/2" - 20 x 1.031"

12шт.

2

86604325

RIM

2шт.

3

86974344

HUB

Spindle A

2шт.

4

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

5

47569777

AXLE

W/ Undershot Rotors

1шт.

5

84535647

AXLE

W/ Overshot Feeders

1шт.

6

86564435

TYRE/TIRE

Tubeless

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

196033

VALVE STEM

2шт.

9

86000441

NUT,M16 x 2.0, Cl 8

2шт.

10

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

2шт.
