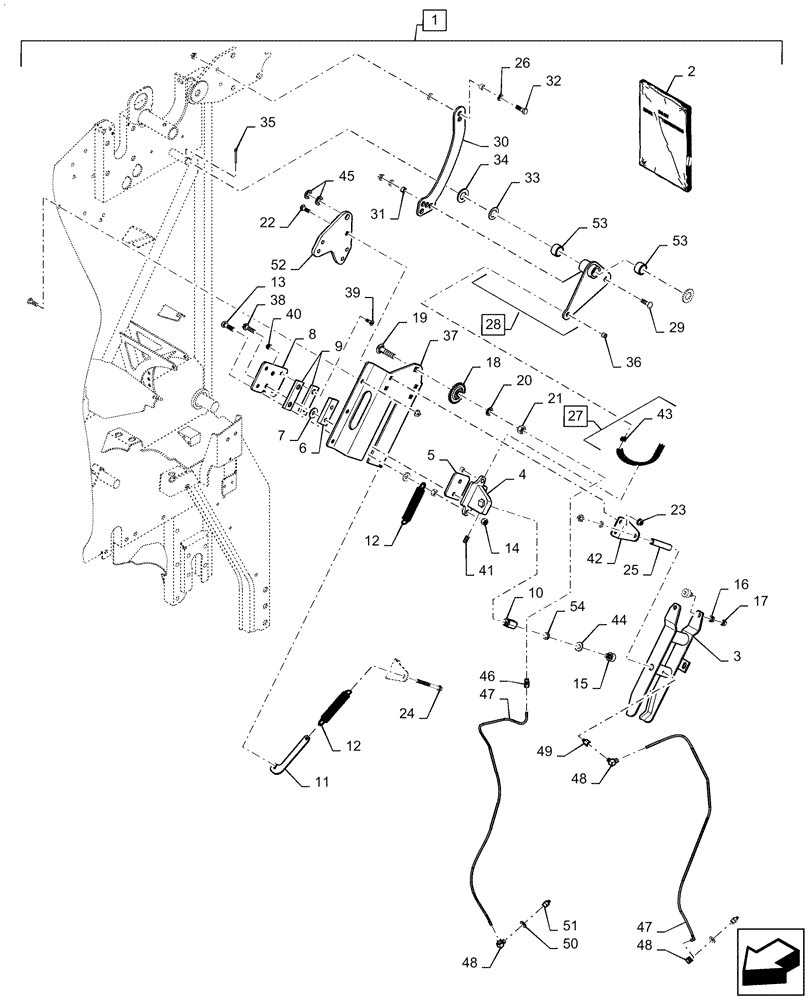

Запчасти Case IH RB465 (88.100.62[03 OBS]) - DIA KIT, DECLUTCH 84402183 (88) - ACCESSORIES

1

84402183

DIA KIT, HARVESTER

Declutch, Incl 2 - 54

1шт.

2

48104305

Installation

INSTRUCTION

1шт.

3

47797761

ARM

1шт.

4

47781564

BLOCK

1шт.

5

84545260

SLIDE

1шт.

6

84590444

PLATE

1шт.

7

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

2шт.

8

47819696

PLATE

1шт.

9

84158032

SLIDE

2шт.

10

47630705

SHAFT

1шт.

11

47481775

HOOK

1шт.

12

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

2шт.

13

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

84146982

BEARING, ROLLER, CYL

4шт.

16

9808171

SPACER,12mm ID x 19mm OD x 7mm Thk

2шт.

17

280474

NUT,7/16"-20, GC

2шт.

18

103243

DRIVEN SPROCKET

Idler, 18T

1шт.

19

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

20

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

22

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

13шт.

24

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

25

47596314

SPACER

1шт.

26

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

27

47799278

CHAIN,41 Links x 12.7mm Pitch = 520.7mm L

RB40, 41 Total Pitches, Hardened Pins, Incl 43

1шт.

28

87020603

CRANK

Incl 53

1шт.

29

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

5шт.

30

84534787

LEVER

1шт.

31

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

2шт.

32

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

33

134463

WASHER,.030" Thk

1шт.

34

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

35

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

36

9621737

HUB

2шт.

37

84134471

CHANNEL

1шт.

38

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

2шт.

39

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

4шт.

40

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

41

81763

SET SCREW,Hex Soc, 3/8"-16 x 1"

1шт.

42

47819695

ANGLE

1шт.

43

47799321

LINK,RC 2040, 25.4 Pitch

2шт.

44

81547

LOCK WASHER,7/16"

2шт.

45

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

46

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

47

87014413

TUBE,4.80 mm OD x 1850 mm L

1шт.

Cut to Fit Required

1шт.

48

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

3шт.

49

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

1шт.

50

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

51

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

2шт.

52

47532701

STIFFENER

1шт.

53

9822495

BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L

2шт.

54

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

2шт.
