Запчасти Case IH RB465 (88.100.55[05]) - DIA KIT, BALE RAMP SENSOR (88) - ACCESSORIES

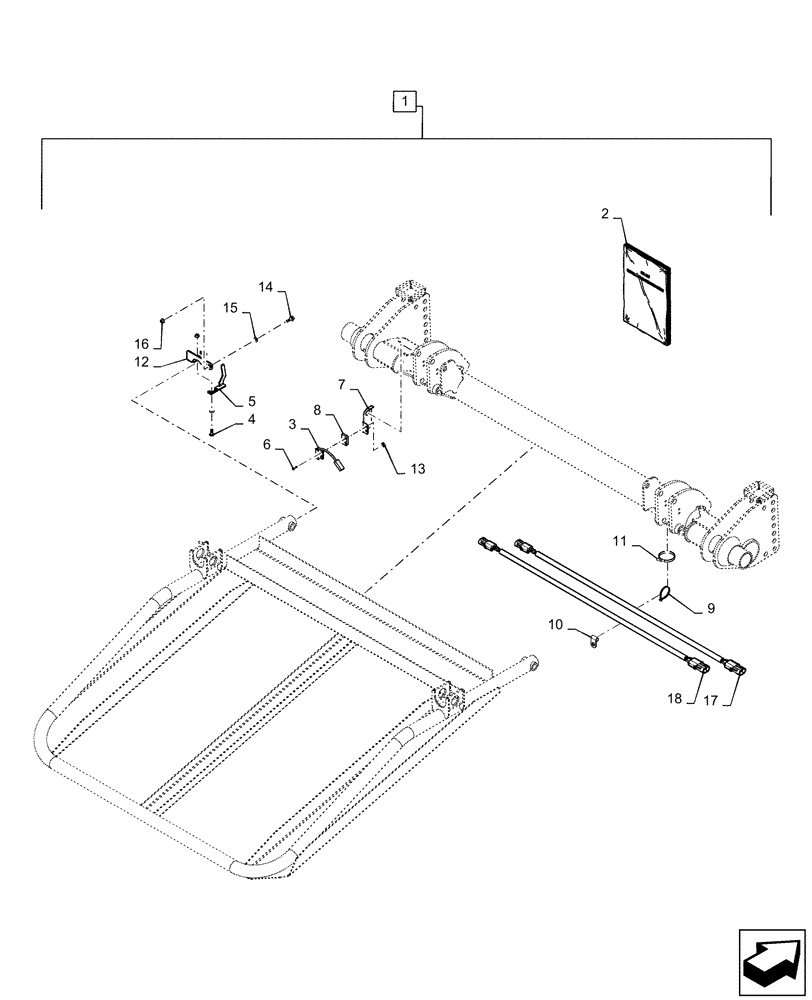

Схема запчастей Case IH RB465 - (88.100.55[05]) - DIA KIT, BALE RAMP SENSOR (88) - ACCESSORIES
11
17
5
13
14
3
2
15
8
18
6
10
7
9
1
12
16
4

Артикул

Название

Примечание

Количество

1

47429751

DIA KIT, HARVESTER

Bale Ramp Sensor, Incl 2 - 18

1шт.

2

84555198

INSTRUCTION

1шт.

3

86594422

SENSOR

Bale Ramp

1шт.

4

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

47674557

BRACKET

1шт.

6

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

7

47659780

BRACKET

1шт.

8

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

9

86566989

CABLE TIE,208mm L

12шт.

10

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

11

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

12

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

13

86900323

NUT,#10 - 24

2шт.

14

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

17

84279867

WIRE HARNESS

Bale Ramp Sensor

1шт.

Used on Models with Standard Wrapper System

1шт.

18

84279868

WIRE HARNESS

Bale Ramp Sensor

1шт.

Used on Models with Deluxe Wrapper System & ISOBUS

1шт.

Выбрано товаров: 20
