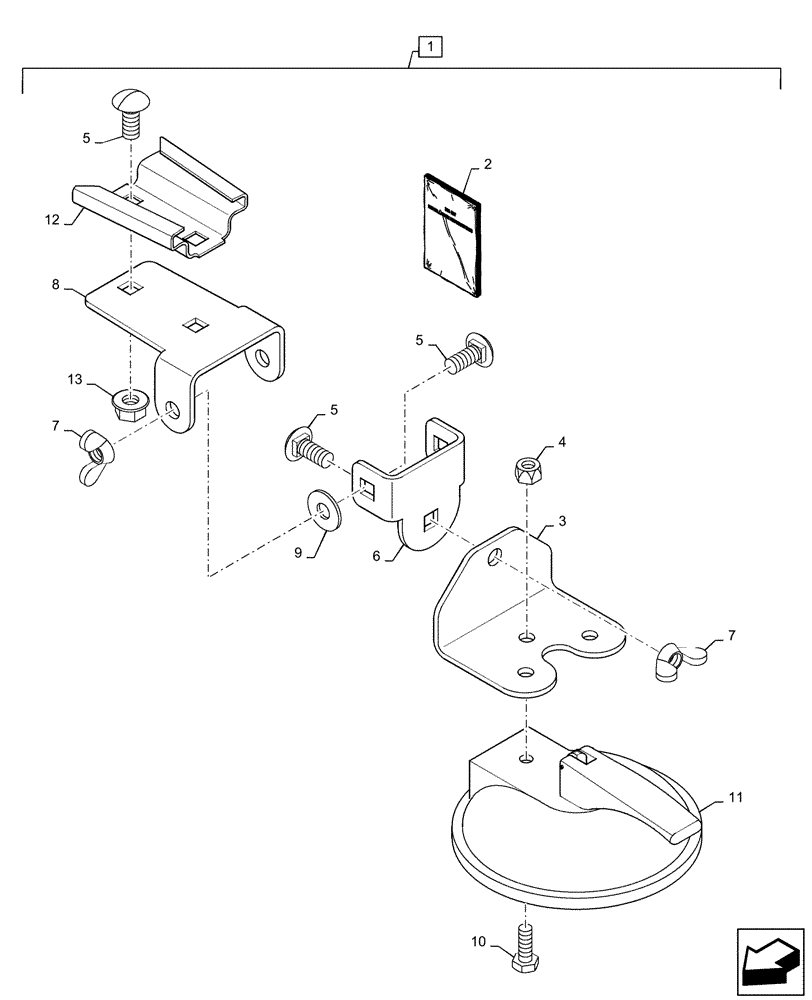

Запчасти Case IH RB465 (88.100.55[04]) - DIA KIT, OPERATOR PANEL VACUUM MOUNT (88) - ACCESSORIES

1

47409525

DIA KIT, HARVESTER

Operator Panel Vacuum Mount, Incl 2 - 13

1шт.

2

47427204

INSTRUCTION

1шт.

3

47409377

BRACKET

1шт.

4

20356

NUT,1/4"-20, GB

1шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

6

47409289

BRACKET

1шт.

7

84807781

WING NUT,M8

3шт.

8

47409286

BRACKET

1шт.

9

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

10

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

11

47409498

BRACKET

1шт.

12

847590

BRACKET

1шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.
