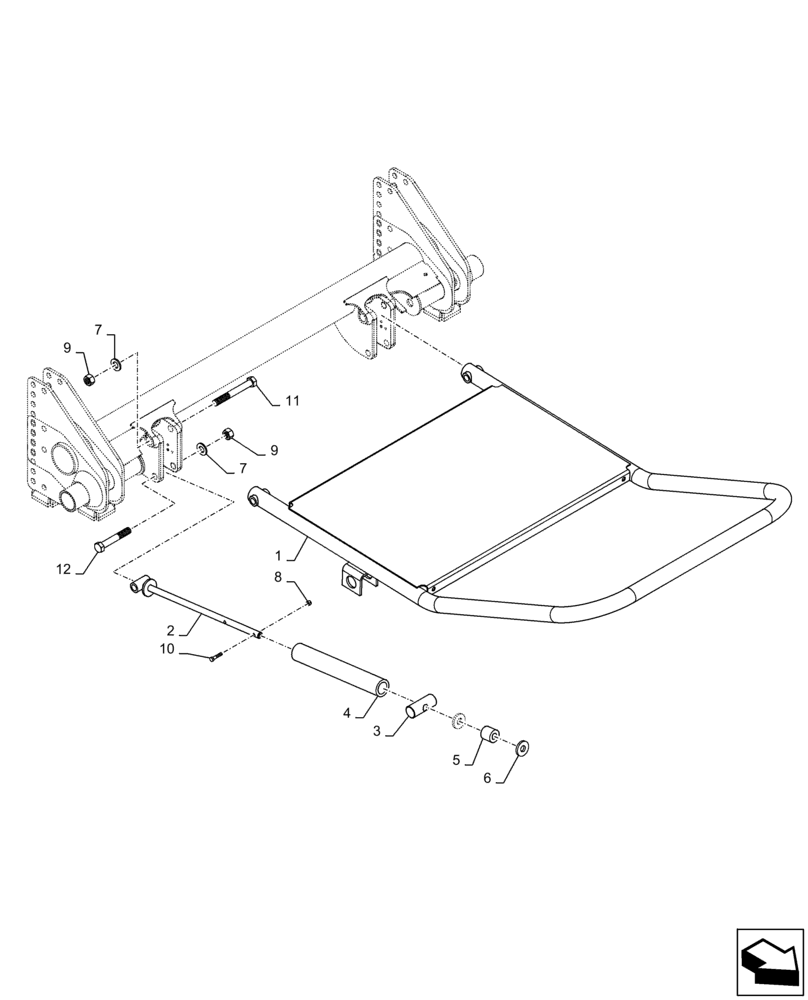

Запчасти Case IH RB465 (70.280.AB[02]) - VAR - 726809 - BALE EJECTOR, YFN188618 AND PRIOR (70) - EJECTION

1

87045728

EJECTOR

Bale

1шт.

2

87028071

ROD ASSY.

2шт.

3

87028069

PIN

2шт.

4

87029355

SPRING,Compression, 2.14" OD x 19.9" L

2шт.

5

86562970

BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L

2шт.

6

87040148

WASHER,19.81mm ID x 47.497mm OD x 6.35mm Thk

4шт.

7

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

4шт.

8

86629544

NUT,5/16” – 18, GR B

2шт.

9

280954

NUT,3/4"-10, G5

4шт.

10

86514369

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

2шт.

11

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

12

281011

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 5

2шт.
