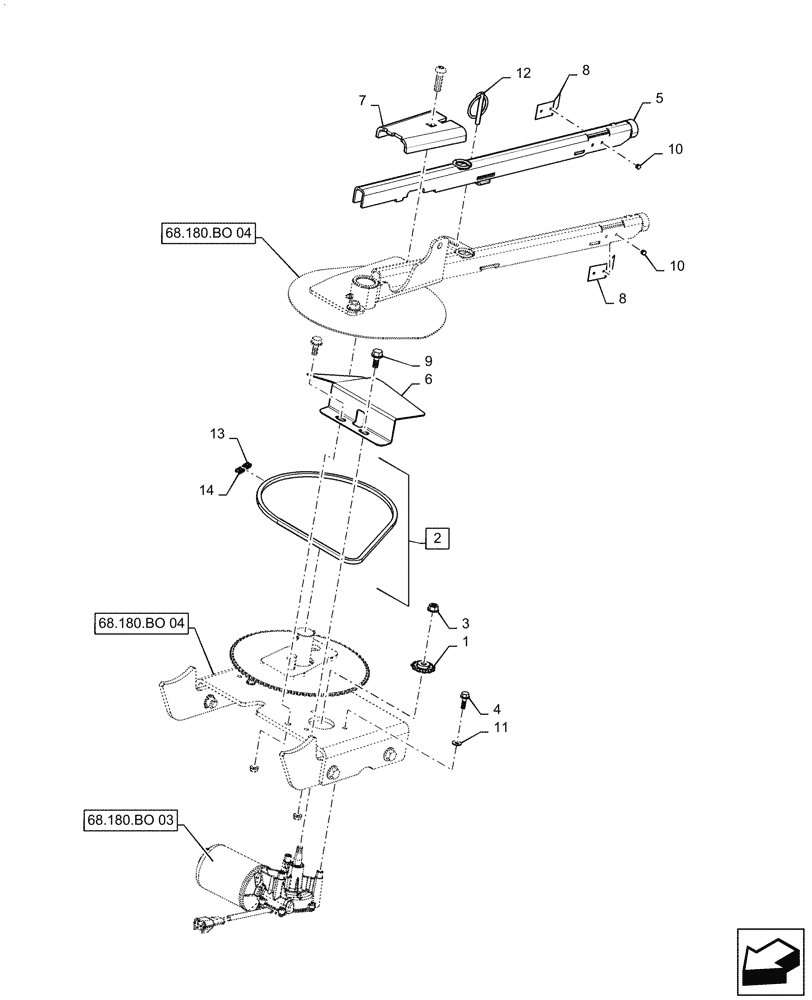

Запчасти Case IH RB465 (68.180.BO[01]) - TWINE ARM, P.I.N. YGN190281 AND AFTER (68) - TYING/WRAPPING

1

84258225

SPROCKET,RC35, 11T

1шт.

2

84259286

CHAIN,35, 83 Links x 3/8" = 31-1/8" L

Incl 13, 14

1шт.

3

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

5

47939906

ARM

Twine

1шт.

6

47928280

SHIELD

1шт.

7

84283485

ANGLE

1шт.

8

47922005

LEAF SPRING

Twine Tension

2шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

86637656

RIVET,Pop, 1/8" x .337"

4шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

12

270184

LINCH PIN,6.35mm OD

1шт.

13

117226

OFFSET LINK

1шт.

14

86516818

CONNECTING LINK

1шт.
