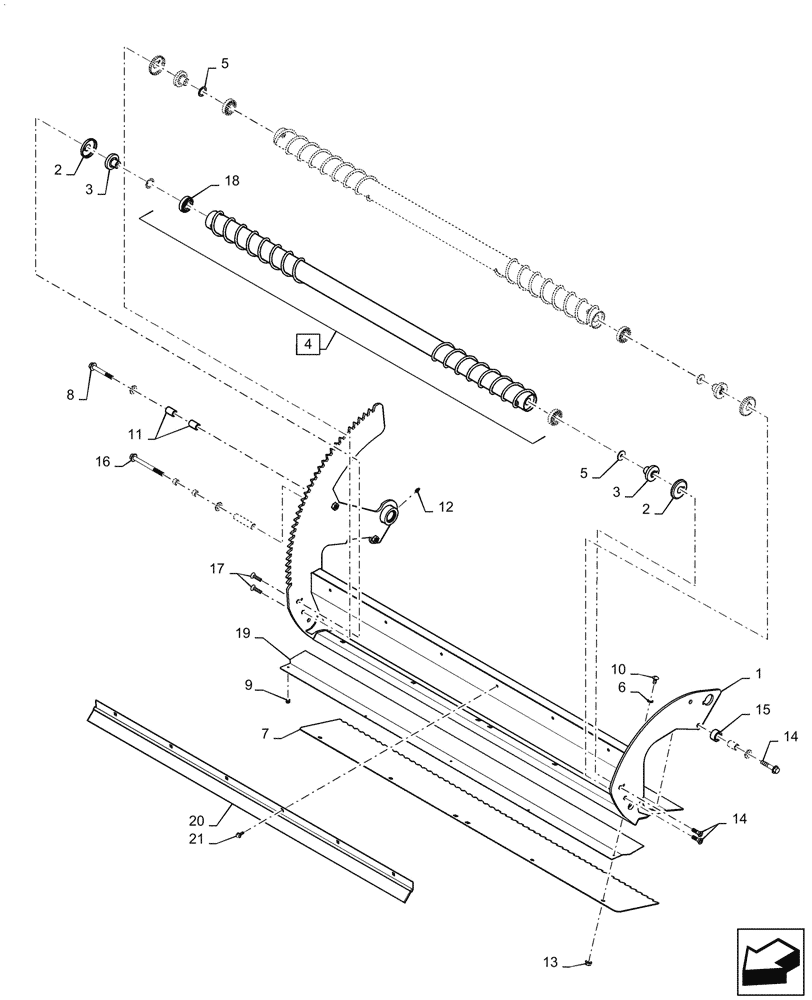

Запчасти Case IH RB465 (68.170.AX) - NET WRAP, DUCKBILL (68) - TYING/WRAPPING

1

47516493

FRAME

Duckbill

1шт.

2

86622552

SHIELD

4шт.

3

87643130

SUPPORT

4шт.

4

86614003

ROLLER

Spreader, Incl 18

2шт.

5

794034

WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk

4шт.

6

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

7

47942313

BAFFLE

1.5mm Thk.

1шт.

7

47826857

BAFFLE

1.2mm Thk., Optional

1шт.

8

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

1шт.

9

86637656

RIVET,Pop, 1/8" x .337"

5шт.

10

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

11

87643020

BUSHING,12.7mm ID x 17.5mm OD x 27.69mm L

3шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

14

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

1шт.

15

65957

BUSHING,18.23mm ID x 28.61mm OD x 15.75mm W

1шт.

16

86624958

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

17

280760

HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"

4шт.

18

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

4шт.

19

47492146

PLATE

Optional Duckbill Liner

1шт.

20

48069855

BRUSH

1шт.

21

392695

SELF-TAP SCREW,Hex Wshr Hd, M6 x 16mm

6шт.
